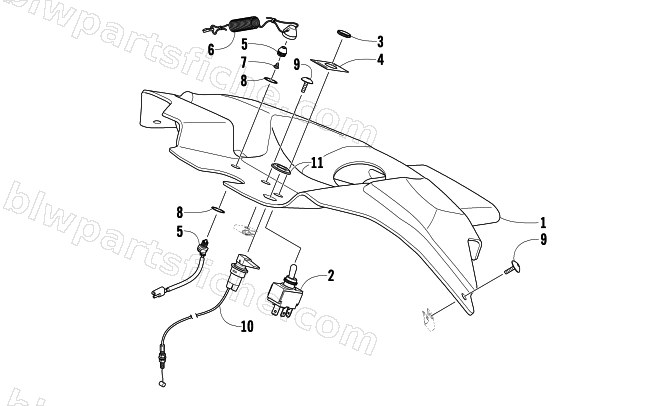

2010 Arctic Cat 600 SNO PRO CROSS COUNTRY — CONSOLE AND SWITCH ASSEMBLY
2010 600 SNO PRO CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-892 | CONSOLE,CROSS COUNTRY-ROUTED | 1 | $177.95 | |
| 2 | 0609-904 | SWITCH,TOGGLE-SPST | 1 | $24.77 | |
| 3 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 4 | 9611-053 | DECAL,TOGGLE SWITCH | 1 | $19.25 | |
| 5 | 0709-072 | TETHER SWITCH-400MM ASSY | 1 | $88.95 | |
| 6 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 8 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 0687-228 | CABLE,CHOKE | 1 | $81.95 |
