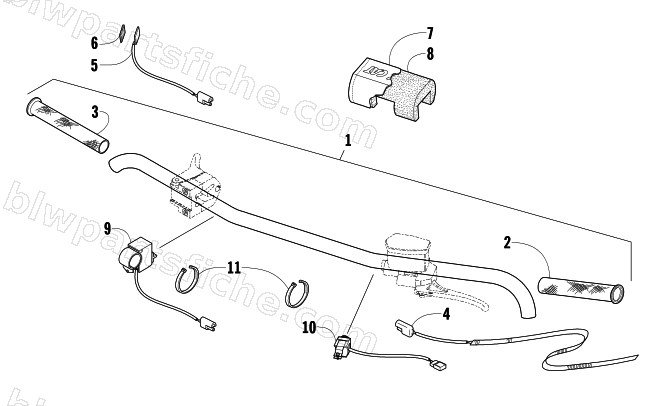

2010 Arctic Cat 600 SNO PRO — HANDLEBAR ASSEMBLY
2010 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-042 | HANDLEBAR W/HOOKS-SP ASSY-GRN | 1 | $267.95 | |
| 1 | 1705-155 | HANDLEBAR,HD W/HOOKS-SP ASSY-GRN | 1 | $267.95 | |
| 2 | 2606-400 | GRIP, HANDLEBAR-LH-8.00" | 1 | $17.87 | |
| 3 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 4 | 0609-644 | ELEMENT,HW-RH STRIP W/#21 | 1 | $113.95 | |
| 4 | 0609-645 | ELEMENT,HW-LH STRIP W/#21 | 1 | $113.95 | |
| 5 | 0609-646 | ELEMENT, HEATER - TW W/ #21 | 1 | $74.95 | |
| 6 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 7 | 1705-307 | WRAP,HANDLEBAR PAD-ASSY | 1 | $57.95 | |
| 8 | 0605-986 | FOAM,HANDLEBAR | 1 | $19.25 | |
| 9 | 0609-471 | SWITCH,STOP-ENGINE (SLIDE) | 1 | $78.95 | |
| 10 | 0609-643 | SWITCH,PB-TIMING | 1 | $66.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
