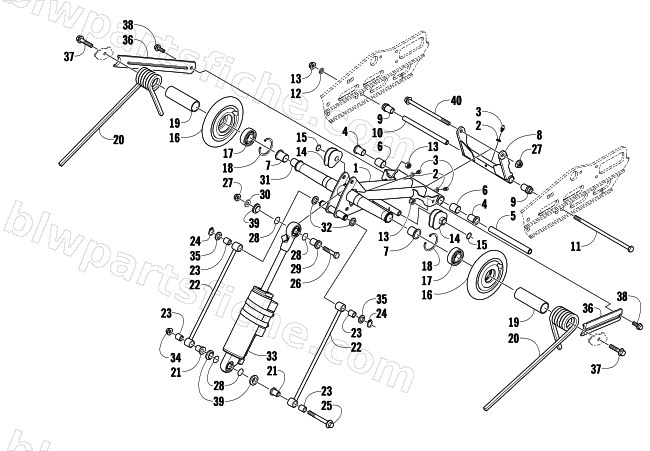

2010 Arctic Cat 600 SNO PRO — REAR SUSPENSION REAR ARM ASSEMBLY
2010 600 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-918 | ARM,IDLER-FABR | 1 | $418.95 | |
| 2 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 3604-222 | BUSHING,AXLE | 1 | $34.95 | |
| 5 | 3604-226 | AXLE,ALUM-.622 X 6.817 | 1 | $73.95 | |
| 6 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 7 | 3604-223 | BEARING,FLANGED-PLASTIC | 1 | $15.11 | |
| 8 | 1704-368 | ARM,REAR-FABR | 1 | $108.95 | |
| 9 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 10 | 2604-665 | TUBE,AXLE-REAR ARM | 1 | $29.95 | |
| 11 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 14 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 15 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 16 | 3604-230 | WHEEL,IDL-6.38(NO INSR)W/HOLE | 1 | $110.95 | |
| 17 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 18 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 19 | 3604-414 | SLEEVE,SPRING-4.50" | 1 | $9.59 | |
| 20 | 1704-916 | SPRING,SUSP-.405 SQ-RH-PTD BLK | 1 | $125.95 | |
| 20 | 1704-917 | SPRING,SUSP-.405 SQ-LH-PTD BLK | 1 | $125.95 | |
| 20 | 1704-384 | SPRING,SUSPENSION-RH HEAVY-PTD BLK | 1 | $144.95 | |
| 20 | 1704-385 | SPRING,SUSPENSION-LH HEAVY-PTD BLK | 1 | $144.95 | |
| 21 | 3604-209 | AXLE, LINK-FLANGED | 1 | $15.11 | |
| 22 | 1704-377 | LINK,REAR SHOCK-FABR | 1 | $53.95 | |
| 23 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 24 | 0623-237 | SNAP RING,EXTL-5/8 DIA | 1 | $1.92 | |
| 25 | 8026-414 | SCREW,CAP-HFH 1/2-13 X 4 GR8 Z&Y | 1 | $5.65 | |
| 26 | 1623-120 | SCREW,CAP-HH 3/8-16X1.94 GR 5 Z&Y | 1 | $13.73 | |
| 27 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 28 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 29 | 3604-127 | SPACER,SPHERICAL BEARING | 1 | $51.95 | |
| 30 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 31 | 3604-388 | AXLE,ALUM-INNER CARRIAGE-.749X15.362 | 1 | $77.95 | |
| 32 | 1623-384 | WASHER,URETHANE-.180X1.00X.165 | 1 | $12.35 | |
| 33 | 1704-829 | SHOCK,REAR ARM-FOX (SNO CROSS) | 1 | $1,223.95 | |
| 34 | 8047-610 | NUT,HEX FLG-NY LOCK 1/2-13 GR G Z&Y | 1 | $2.75 | |
| 35 | 1623-389 | WASHER,FLAT-.641 X .900 X .060 Z&Y | 1 | $1.37 | |
| 36 | 3604-408 | BRACE,SUPPORT-IDLER ARM-MACH | 1 | $36.95 | |
| 37 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 38 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 39 | 3604-210 | SPACER, BEARING-.500 ID | 1 | $6.75 | |
| 40 | 1623-674 | SCREW,CAP-HH 3/8-16X7.8 GR 5 Z&Y | 1 | $20.63 |
