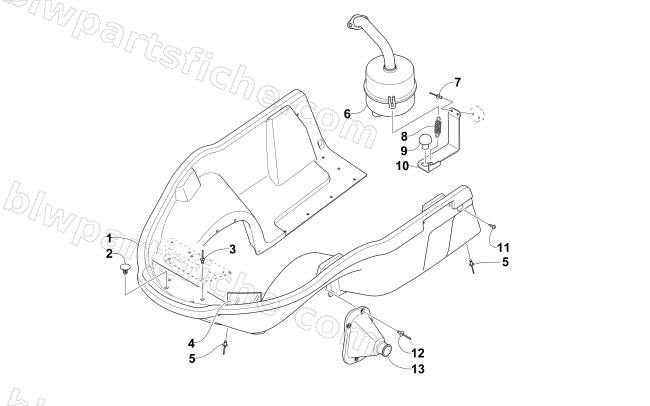

2010 Arctic Cat AC 120 SNO PRO — BELLY PAN AND EXHAUST ASSEMBLIES
2010 AC 120 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-006 | BELLY PAN, BLK-120 | 1 | $251.95 | |
| 2 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 3 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 4 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 5 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 6 | 1712-779 | MUFFLER(120)-PTD BLK | 1 | $171.95 | |
| 7 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 8 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 9 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 10 | 0712-914 | BRACKET,MUFFLER SUPPORT-PTD BLK | 1 | $15.11 | |
| 11 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 12 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 13 | 0605-464 | BOOT,TIE ROD-RH | 1 | $42.95 | |
| 13 | 0605-465 | BOOT,TIE ROD-LH | 1 | $42.95 |
