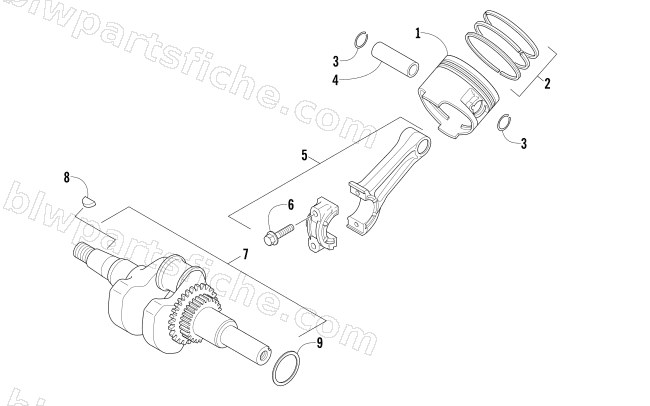

2010 Arctic Cat AC 120 SNO PRO — PISTON AND CRANKSHAFT ASSEMBLY
2010 AC 120 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-013 | PISTON | 1 | $58.95 | |
| 1 | 3020-015 | PISTON (0.25MM O/S) | 1 | $65.95 | |
| 1 | 3020-016 | PISTON (0.50MM O/S) | 1 | $65.95 | |
| 2 | 3020-010 | PISTON RING SET | 1 | $42.95 | |
| 2 | 3020-011 | PISTON RING SET (0.25MM O/S) | 1 | $34.95 | |
| 2 | 3020-012 | PISTON RING SET (0.50MM O/S) | 1 | $34.95 | |
| 3 | 3020-115 | CIRCLIP | 1 | $2.19 | |
| 4 | 3020-014 | PIN, PISTON | 1 | $13.73 | |
| 5 | 3020-031 | CONNECTING ROD ASSY | 1 | $121.95 | |
| 6 | 3020-032 | B0LT, CONNECTING ROD | 1 | $6.75 | |
| 7 | 3020-029 | CRANKSHAFT ASSY | 1 | $334.95 | |
| 8 | 3020-098 | KEY, WOODRUFF | 1 | $15.11 | |
| 9 | 3020-030 | SHIM, CRANKSHAFT | 1 | $3.30 |
