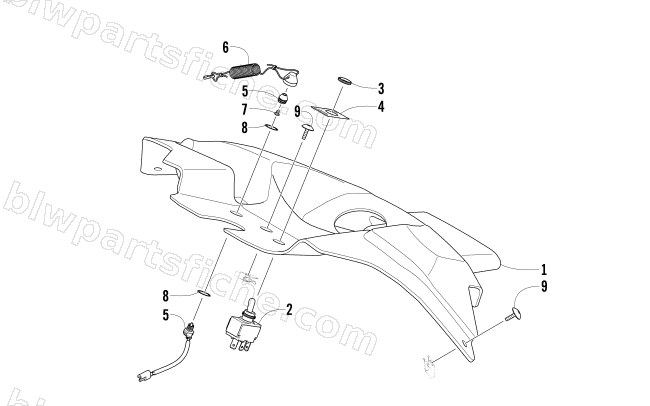

CONSOLE AND SWITCH ASSEMBLY
2010 ARCTIC CAT 500 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5606-856 | CONSOLE | 1 | $191.95 | |
| 2 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 3 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 4 | 9611-052 | DECAL,TOGGLE SWITCH-HAND/THUMBWARMER | 1 | $15.11 | |
| 5 | 0709-072 | TETHER SWITCH-400MM ASSY | 1 | $88.95 | |
| 6 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 8 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 |
