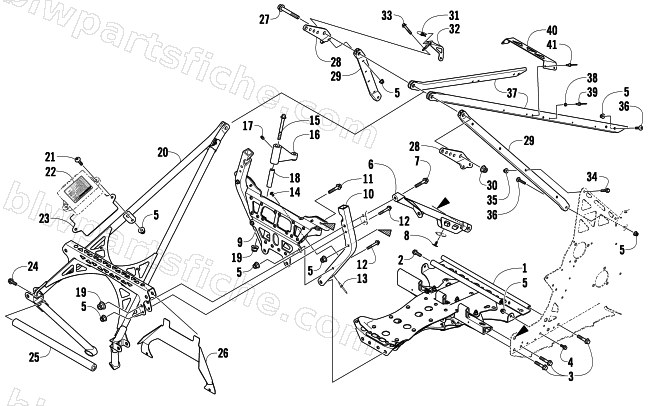

2010 Arctic Cat ARCTIC CAT 500 SNO PRO — FRONT FRAME AND STEERING SUPPORT ASSEMBLY
2010 ARCTIC CAT 500 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-464 | GUSSET,LWR ARM-SPR | 1 | $583.95 | |
| 2 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 3 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 4 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 4706-518 | BRACE,DIAGONAL-PTD BLK-RH | 1 | $108.95 | |
| 6 | 4706-519 | BRACE,DIAGONAL-PTD BLK-LH | 1 | $108.95 | |
| 7 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 8 | 0623-589 | CLIP,RETAINING-.191X.700 | 1 | $2.75 | |
| 9 | 1707-164 | BULKHEAD,STEERING-FABR | 1 | $236.95 | |
| 10 | 0607-930 | TUBE,BULKHEAD-RH | 1 | $69.95 | |
| 10 | 0607-931 | TUBE,BULKHEAD-LH | 1 | $69.95 | |
| 11 | 8408-645 | SCREW,CAP-HFH M6X1.0X45 CL8.8 Z&Y | 1 | $1.50 | |
| 12 | 8408-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 Z&Y | 1 | $1.50 | |
| 13 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 14 | 1623-463 | SCREW,PT THREAD FORMING-K60-2.69X12mm | 1 | $1.78 | |
| 15 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 16 | 1707-420 | BELLCRANK,STEERING-FABR-RH | 1 | $76.95 | |
| 16 | 1707-421 | BELLCRANK,STEERING-FABR-LH | 1 | $76.95 | |
| 17 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 18 | 2603-436 | AXLE,BELL CRANK | 1 | $9.59 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 4706-779 | SPAR,UPR-PTD BLK | 1 | $402.95 | |
| 21 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 22 | 9611-057 | DECAL,EFI DIAGNOSTIC CODES-10 | 1 | $6.47 | |
| 23 | 4606-942 | COVER,ECU-500/600 | 1 | $13.73 | |
| 24 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 25 | 4706-885 | CROSSBRACE,FRONT ARM-MACH | 1 | $29.95 | |
| 26 | 6606-063 | PANEL,CLOSEOFF-UPR SHOCK BRACE | 1 | $16.49 | |
| 27 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 28 | 0605-962 | BRKT,STEERING-RH | 1 | $42.95 | |
| 28 | 0605-963 | BRKT,STEERING-LH | 1 | $42.95 | |
| 29 | 4706-096 | SPAR,MIDDLE-MACH RH | 1 | $41.95 | |
| 29 | 4706-097 | SPAR,MIDDLE-MACH LH | 1 | $41.95 | |
| 30 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 31 | 1623-052 | NUT,U | 1 | $0.95 | |
| 32 | 5606-396 | BRKT,MTG-CONSOLE | 1 | $24.77 | |
| 33 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 34 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 35 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 36 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 37 | 4706-524 | SPAR,REAR-MACH RH | 1 | $51.95 | |
| 37 | 4706-525 | SPAR, REAR-MACH LH | 1 | $51.95 | |
| 38 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 39 | 8060-284 | RIVET,BLIND-DH SS43 ZINC | 1 | $0.26 | |
| 40 | 5606-616 | BRACE,SUPPORT-SPAR | 1 | $33.95 | |
| 41 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
