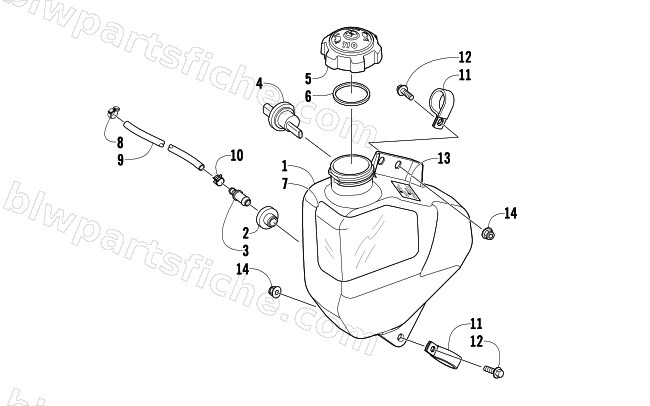

2010 Arctic Cat ARCTIC CAT 500 SNO PRO — OIL TANK ASSEMBLY
2010 ARCTIC CAT 500 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-113 | TANK,OIL | 1 | $105.95 | |
| 2 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 3 | 1670-481 | FITTING,OIL TANK | 1 | $4.26 | |
| 4 | 0609-915 | SWITCH, LEVEL-OIL | 1 | $49.95 | |
| 5 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 6606-207 | FOIL,PROTECTIVE-OIL TANK | 1 | $2.75 | |
| 8 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 9 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 9 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 10 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 11 | 1623-777 | CLAMP,CABLE | 1 | $3.85 | |
| 12 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 13 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
