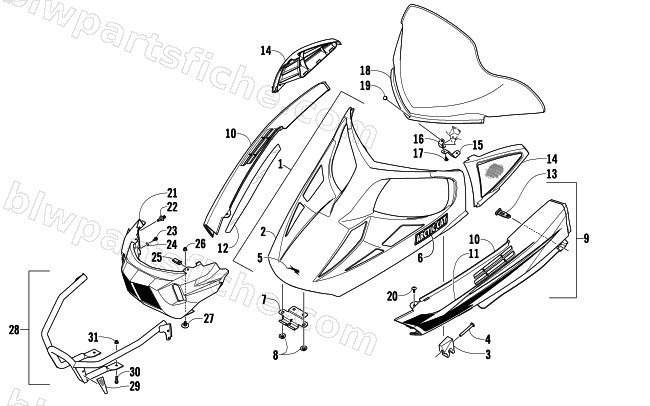

2010 Arctic Cat BEARCAT 570 XT — HOOD, WINDSHIELD, AND FRONT BUMBER ASSEMBLY
2010 BEARCAT 570 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-527 | LID,HOOD-BLU W/O VENTS-W/DECALS | 1 | $261.95 | |
| 2 | 7800-235 | LID,HOOD-BC BLUE-W/O VENTS-MFG ASSY | 1 | $174.95 | |
| 3 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 3 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 4 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 5 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 6 | 8611-807 | DECAL,HOOD LID "ARCTIC CAT" | 1 | $43.95 | |
| 7 | 6606-027 | BRKT,LID HINGE-BCXT | 1 | $20.63 | |
| 8 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 9 | 2718-836 | SPAR,FRONT-RH-BLU XT-W/DECALS | 1 | $90.95 | |
| 9 | 2718-837 | SPAR,FRONT-LH-BLU XT-W/DECALS | 1 | $87.95 | |
| 10 | 5606-726 | SPAR,RH-FRONT-MOLD BLUE | 1 | $82.95 | |
| 10 | 5606-727 | SPAR,LH-FRONT-MOLD BLUE | 1 | $82.95 | |
| 11 | 8611-810 | DECAL,FRT SPAR RH-XT | 1 | $77.95 | |
| 11 | 8611-811 | DECAL,FRT SPAR LH-XT | 1 | $74.95 | |
| 12 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 5606-934 | BEZEL,INTAKE-RH-BLU ASSY | 1 | $53.95 | |
| 14 | 5606-935 | BEZEL,INTAKE-LH-BLU ASSY | 1 | $59.95 | |
| 15 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 16 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 17 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 18 | 5606-962 | WINDSHIELD,HIGH-TINT | 1 | $224.95 | |
| 19 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 21 | 5606-351 | FACIA, FRT-MOLD BLK | 1 | $116.95 | |
| 22 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 23 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 24 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 25 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 26 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 27 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 28 | 4706-961 | BUMPER,FRONT W/REFLECTORS | 1 | $259.95 | |
| 29 | 9611-238 | DECAL,REFLECTOR-AMBER-RH | 1 | $21.95 | |
| 29 | 9611-239 | DECAL,REFLECTOR-AMBER-LH | 1 | $21.95 | |
| 30 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 31 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
