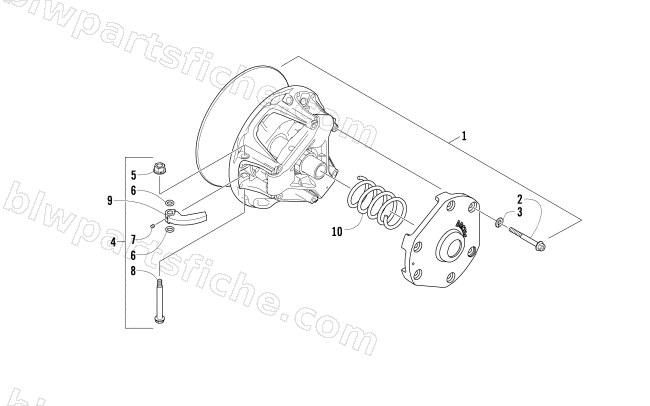

2010 Arctic Cat BEARCAT Z1 XT — DRIVE CLUTCH
2010 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 2 | 1623-670 | SCREW,CAP FH SHOULDER 1/4-20X2.5 GD 8 | 1 | $20.63 | |
| 3 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 4 | 4639-674 | KIT,CAM ARM REPAIR '05-'09(WIDE) | 1 | $58.95 | |
| 5 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 6 | 1602-692 | O-RING, 5/16 X 1/2 X 3/32 - VITON | 1 | $0.68 | |
| 7 | 1623-183 | SCREW,SET-CUP PT W/THD LOC-8-32X3/16 | 1 | $1.64 | |
| 8 | 0646-747 | PIN, CAM ARM | 1 | $17.87 | |
| 9 | 0746-824 | ARM-CAM W/ SET SCREW-66G-SPEC | 1 | $10.95 | |
| 9 | 0746-825 | ARM,CAM-WIDE-P3-50 GRAM W/SET SCREW | 1 | $33.95 | |
| 10 | 0646-367 | SPRING, COMPRESSION-160# | 1 | $57.95 | |
| 10 | 0646-433 | SPRING,CLUTCH-GOLD STRIPE-75/275 LB | 1 | $53.95 |
