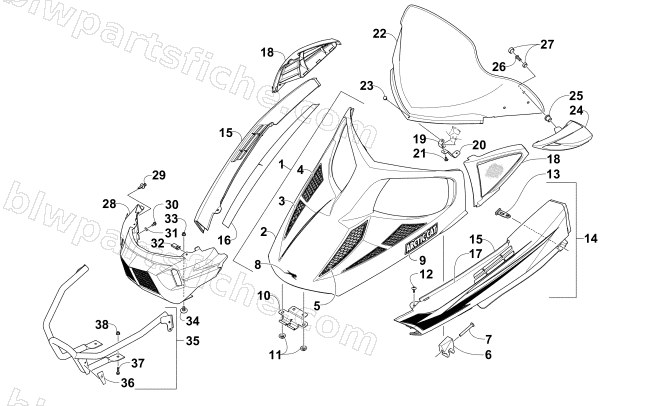

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2010 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-813 | LID,HOOD-GRN PTD CLEAR W/ DECALS | 1 | $321.95 | |
| 1 | 2718-535 | LID,HOOD-BLUE PTD CLEAR W/DECALS | 1 | $321.95 | |
| 2 | 7800-521 | LID, HOOD-GRN PTD CLEAR-MFG ASSY | 1 | $190.95 | |
| 2 | 7800-584 | LID,HOOD-BLU PTD CLR-MFG ASSY-BCWT Z1 | 1 | $190.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 8611-807 | DECAL,HOOD LID "ARCTIC CAT" | 1 | $43.95 | |
| 10 | 6606-027 | BRKT,LID HINGE-BCXT | 1 | $20.63 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 2718-808 | SPAR,FRONT-RH-GRN PTD CLR-XT-W/DECALS | 1 | $273.95 | |
| 14 | 2718-809 | SPAR,FRONT-LH-GRN PTD CLR-XT-W/DECALS | 1 | $273.95 | |
| 14 | 2718-806 | SPAR,FRONT-RH-XT-BLU PTD CLR-W/DECALS | 1 | $141.95 | |
| 14 | 2718-807 | SPAR,FRONT-LH-XT-BLU PTD CLR-W/DECALS | 1 | $141.95 | |
| 15 | 4706-682 | SPAR,RH-FRONT-GRN PTD CLEAR | 1 | $152.95 | |
| 15 | 4706-683 | SPAR,LH-FRONT-GRN PTD CLEAR | 1 | $152.95 | |
| 15 | 4706-680 | SPAR,RH-FRONT-BLUE PTD CLEAR | 1 | $160.95 | |
| 15 | 4706-681 | SPAR,LH-FRONT-BLUE PTD CLEAR | 1 | $160.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 8611-974 | DECAL,SPAR-FRONT-GRN-RH | 1 | $171.95 | |
| 17 | 8611-975 | DECAL,SPAR-FRONT-GRN-LH | 1 | $171.95 | |
| 17 | 8611-810 | DECAL,FRT SPAR RH-XT | 1 | $77.95 | |
| 17 | 8611-811 | DECAL,FRT SPAR LH-XT | 1 | $74.95 | |
| 18 | 4706-644 | BEZEL,INTAKE-RH GRN PTD CLEAR-ASSY | 1 | $54.95 | |
| 18 | 4706-645 | BEZEL,INTAKE-LH GRN PTD CLEAR-ASSY | 1 | $56.95 | |
| 18 | 4706-690 | BEZEL,INTAKE-RH-BLU PTD CLR-ASSY | 1 | $60.95 | |
| 18 | 4706-691 | BEZEL,INTAKE-LH-BLU PTD CLR-ASSY | 1 | $60.95 | |
| 19 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 20 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 21 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 23 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 24 | 6639-629 | KIT,MIRROR(SINGLE)'08-BLK | 1 | $46.95 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 27 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 28 | 4706-686 | FACIA, FRT-BLK PTD CLR | 1 | $129.95 | |
| 29 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 30 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 31 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 33 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 34 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 35 | 4706-961 | BUMPER,FRONT W/REFLECTORS | 1 | $259.95 | |
| 36 | 9611-238 | DECAL,REFLECTOR-AMBER-RH | 1 | $21.95 | |
| 36 | 9611-239 | DECAL,REFLECTOR-AMBER-LH | 1 | $21.95 | |
| 37 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 38 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
