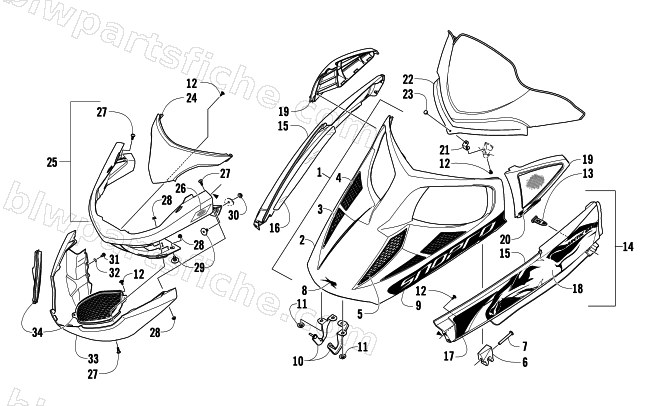

2010 Arctic Cat F6 SNO PRO — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2010 F6 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-681 | LID,HOOD-GRN PTD CLEAR- W/DECALS | 1 | $321.95 | |
| 2 | 7800-521 | LID, HOOD-GRN PTD CLEAR-MFG ASSY | 1 | $190.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 8611-740 | DECAL,HOOD LID-GRN-RH-"SNO PRO" | 1 | $30.95 | |
| 9 | 8611-741 | DECAL,HOOD LID-GRN-LH-"SNO PRO" | 1 | $30.95 | |
| 10 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 10 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 2718-774 | SPAR,FRONT RH-BLK/CLR-W/DECALS (SP) | 1 | $214.95 | |
| 14 | 2718-775 | SPAR,FRONT LH-BLK/CLR-W/DECALS (SP) | 1 | $259.95 | |
| 15 | 4706-610 | SPAR,FRONT BLK-RH-PTD CLEAR | 1 | $117.95 | |
| 15 | 4706-611 | SPAR,FRONT BLK-LH-PTD CLEAR | 1 | $117.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 8611-744 | DECAL,FRONT SPAR-FORWARD-GRN RH | 1 | $93.95 | |
| 17 | 8611-745 | DECAL,FRONT SPAR-FORWARD-GRN LH | 1 | $73.95 | |
| 18 | 8611-746 | DECAL,FRONT SPAR-REAR-GRN RH | 1 | $171.95 | |
| 18 | 8611-747 | DECAL,FRONT SPAR-REAR-GRN LH | 1 | $132.95 | |
| 19 | 4706-644 | BEZEL,INTAKE-RH GRN PTD CLEAR-ASSY | 1 | $54.95 | |
| 19 | 4706-645 | BEZEL,INTAKE-LH GRN PTD CLEAR-ASSY | 1 | $56.95 | |
| 20 | 9611-282 | DECAL,REFLECTOR-AMBER-RH | 1 | $16.95 | |
| 20 | 9611-283 | R/B 9611-385 | 1 | $19.95 | |
| 21 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 22 | 5606-984 | WINDSHIELD,EXTREME LOW-FLAT BACK | 1 | $217.95 | |
| 23 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 24 | 4706-616 | FACIA,BUMPER-UPPER GRN-PTD CLEAR | 1 | $124.95 | |
| 25 | 2718-772 | BUMPER,FRONT CLIP-GRN PTD CLR W/ REFL | 1 | $167.95 | |
| 27 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 5606-463 | R/B 5606-462 | 1 | $56.95 | |
| 34 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 34 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
