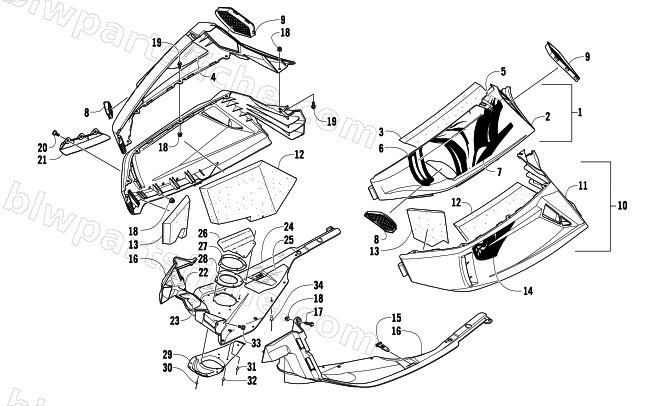

2010 Arctic Cat F6 SNO PRO — SKID PLATE AND SIDE PANEL ASSEMBLY
2010 F6 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-902 | PANEL,SIDE-UPPER RH W/DECALS-BLK/CLR | 1 | $252.95 | |
| 1 | 2718-903 | PANEL,SIDE-UPPER LH W/DECALS-BLK/CLR | 1 | $252.95 | |
| 2 | 2718-790 | PANEL,SIDE-UPPER RH W/O DECALS-BLK/CLR | 1 | $271.95 | |
| 2 | 2718-791 | PANEL,SIDE-UPPER LH W/O DECALS-BLK/CLR | 1 | $271.95 | |
| 3 | 0617-562 | FOAM,UPR SIDE PANEL-RH | 1 | $46.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 8611-750 | DECAL,UPR PANEL-UPPER GRN RH | 1 | $26.95 | |
| 5 | 8611-751 | DECAL,UPR PANEL-UPPER GRN LH | 1 | $27.95 | |
| 6 | 8611-748 | DECAL,UPR PANEL-FWD-GRN RH | 1 | $79.95 | |
| 6 | 8611-749 | DECAL,UPR PANEL-FWD-GRN LH | 1 | $65.95 | |
| 7 | 8611-752 | DECAL,UPR PANEL-CENTER GRN RH | 1 | $58.95 | |
| 7 | 8611-753 | DECAL,UPR PANEL-CENTER GRN LH | 1 | $56.95 | |
| 8 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 9 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 9 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 10 | 2718-906 | PANEL,SIDE-LOWER RH W/DECALS-BLK | 1 | $351.95 | |
| 10 | 2718-907 | PANEL,SIDE-LOWER LH W/DECALS-BLK | 1 | $298.95 | |
| 11 | 2718-798 | PANEL,SIDE-LWR-W/O DECALS RH BLK | 1 | $288.95 | |
| 11 | 2718-349 | PANEL,SIDE-LWR LH W/O DECALS-BLK | 1 | $298.95 | |
| 12 | 0617-568 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $93.95 | |
| 12 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 13 | 0617-564 | FOAM,LWR SIDE PANEL-FRT RH | 1 | $16.49 | |
| 13 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 14 | 8611-756 | DECAL,LWR PANEL-GRN RH | 1 | $94.95 | |
| 14 | 8611-757 | DECAL,LWR PANEL-GRN LH | 1 | $16.59 | |
| 15 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 16 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 16 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 17 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 20 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 21 | 5606-404 | DEFLECTOR,EXHAUST | 1 | $9.79 | |
| 22 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 23 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 24 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 25 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 26 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 27 | 1712-348 | PLATE,EXHAUST OUTLET SEAL-PTD BLK | 1 | $15.11 | |
| 28 | 2612-156 | SEAL,EXHAUST OUTLET-2 STRK | 1 | $17.87 | |
| 29 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 30 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 31 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 32 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 33 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 34 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
