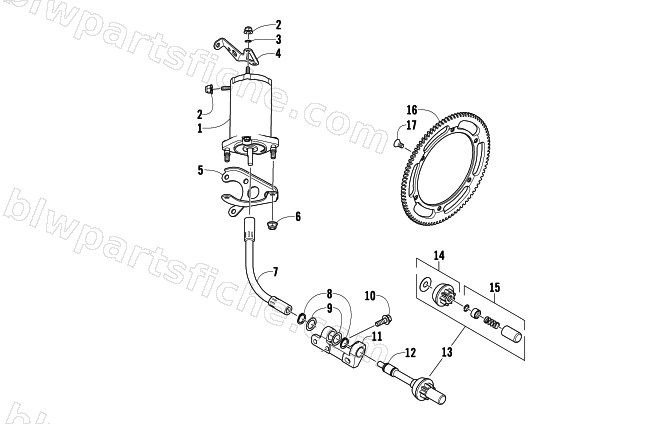

FLEX-DRIVE STARTER MOTOR ASSEMBLY
2010 F8 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-311 | BRKT,SUPPORT-STARTER-PTD BLK | 1 | $50.95 | |
| 2 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 3 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 3 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 4 | 0745-356 | STARTER MOTOR ASSY,FLEX-B W/RIBBOLT/NUTS | 1 | $434.95 | |
| 4 | 0745-326 | BRKT,MTG-STARTER-TOP-PTD BLK-500/600 | 1 | $49.95 | |
| 5 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 5 | 0745-321 | BRKT,MTG-STARTER-BOTTOM-PTD BLK-500/600 | 1 | $56.95 | |
| 6 | 0745-278 | BRKT,MTG-STARTER-PTD BLK | 1 | $54.95 | |
| 7 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 7 | 0745-312 | SHAFT,FLEX-ES ACCY | 1 | $349.95 | |
| 8 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 0745-167 | SHAFT, FLEX-BONDED ES ASSY | 1 | $125.95 | |
| 10 | 0623-891 | SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP | 1 | $1.37 | |
| 10 | 8026-131 | SCREW,CAP-HFH 5/16-18 X .875 GR8 Z&Y | 1 | $3.16 | |
| 11 | 0645-382 | SNAP RING,EXTERNAL - .625 DIA | 1 | $1.64 | |
| 11 | 0745-165 | BRKT, MTG-ES FLEX PINION W/ BUSH | 1 | $58.95 | |
| 12 | 0645-429 | WASHER,THRUST .630I.D. X .915 O.D. | 1 | $3.95 | |
| 13 | 0745-170 | DRIVE/SHAFT, PINION-FLEX 0.63-ASSY | 1 | $232.95 | |
| 14 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 15 | 0645-380 | GEAR, PINION-RUBBER | 1 | $93.95 | |
| 16 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 17 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 18 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 |
