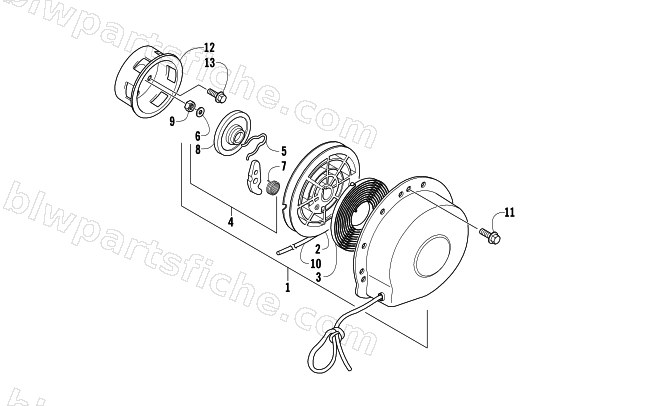

2010 Arctic Cat F8 EFI LXR — RECOIL STARTER
2010 F8 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-307 | STARTER ASSY,RECOIL | 1 | $390.95 | |
| 1 | 3006-915 | STARTER ASS'Y, RECOIL | 1 | $305.95 | |
| 2 | 3007-308 | ROLLER,STARTER | 1 | $82.95 | |
| 2 | 3003-179 | ROLLER,STARTER | 1 | $68.95 | |
| 3 | 3007-309 | RATCHET SET | 1 | $42.95 | |
| 3 | 3002-921 | SPRING,STARTER | 1 | $46.95 | |
| 4 | 3007-310 | PLATE,FRICTION | 1 | $29.95 | |
| 4 | 3006-457 | RACHET SET | 1 | $49.95 | |
| 5 | 3007-311 | BOLT SET | 1 | $4.26 | |
| 6 | 3007-312 | SPRING | 1 | $58.95 | |
| 7 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 8 | 3007-544 | PULLEY,STARTER | 1 | $82.95 | |
| 8 | 3006-475 | PLATE FRICTION | 1 | $34.95 | |
| 9 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 9 | 3006-456 | NUT,8MM | 1 | $1.95 | |
| 10 | 3006-529 | BOLT,6 X 20 | 1 | $3.44 | |
| 11 | 3007-609 | BOLT | 1 | $3.44 | |
| 12 | 3005-531 | PULLEY,STARTER | 1 | $88.95 |
