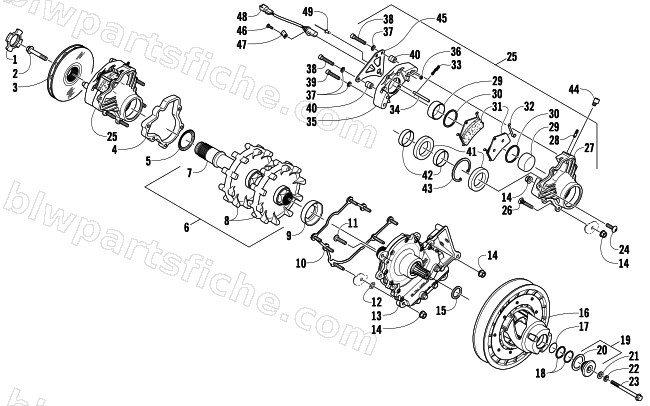

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
2010 F8 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-957 | NUT,RETAINING-SHAFT | 1 | $12.35 | |
| 2 | 1623-461 | SCREW,CAP-HFH-7/16-14X1 3/4 GR8 W/2353 | 1 | $20.63 | |
| 3 | 1602-656 | BRAKE,DISC-ACT DRIVE | 1 | $267.95 | |
| 4 | 1602-480 | SPACER, BRAKE | 1 | $53.95 | |
| 5 | 2602-076 | SHIELD,BEARING-CALIPER | 1 | $12.35 | |
| 6 | 0728-181 | TRACK DRIVE,ASSY-(ACT) | 1 | $457.95 | |
| 7 | 0702-880 | SHAFT,DRIVE W/RETAINER-ASSY | 1 | $409.95 | |
| 8 | 1602-783 | SPROCKET,DRIVE-10T-45MM HEX | 1 | $66.95 | |
| 9 | 1602-984 | SEAL,SLINGER-TRACK SHAFT | 1 | $13.73 | |
| 10 | 1702-060 | PLATE,MTG-REVERSE ACT DRIVE-PTD BLK | 1 | $54.95 | |
| 11 | 8476-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&Y | 1 | $9.59 | |
| 12 | 1623-355 | RETAINER,PUSHNUT-5/16" | 1 | $2.47 | |
| 13 | 1702-137 | GEARCASE,DRIVE-FWD "F" 64/56 5P ASSY | 1 | $1,491.95 | |
| 14 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 15 | 0648-442 | WASHER,FLAT-1.188 X 1.730 X .030 | 1 | $10.97 | |
| 15 | 0648-443 | WASHER,FLAT-1.188 X 1.730 X .060 | 1 | $1.37 | |
| 16 | 0726-310 | CLUTCH,DRIVEN-10.4(44/40N/ORN)W/PLATES | 1 | $735.95 | |
| 17 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 18 | 0648-714 | WASHER, DRIVEN .090 THICK | 1 | $2.06 | |
| 18 | 0648-715 | WASHER, DRIVEN .030 THICK | 1 | $1.23 | |
| 18 | 0648-716 | WASHER, DRIVEN .060 THICK | 1 | $3.44 | |
| 19 | 1702-114 | KIT,ADJUSTER-SHEAVE W/WASHER | 1 | $32.95 | |
| 20 | 0648-788 | WASHER,THRUST-DRIVEN ADJUSTER | 1 | $1.92 | |
| 21 | 1623-415 | WASHER,FLAT-.875X.400X.156 Z&Y | 1 | $8.21 | |
| 22 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 23 | 1623-572 | SCREW,CAP-HFH 3/8-16X4.50 GR8-VENTED | 1 | $33.95 | |
| 24 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 25 | 1702-018 | CALIPER,BRAKE-METRIC-S/P ASSY | 1 | $746.95 | |
| 26 | 1623-713 | BOLT,RIBBED CARR-M8 X 1.25 X 45 | 1 | $24.77 | |
| 28 | 1602-458 | FITTING,BLEED SCREW INSERT-1/4-28 | 1 | $4.26 | |
| 29 | 1602-461 | PISTON,STAINLESS-1.93X.79 | 1 | $86.95 | |
| 30 | 1602-669 | O-RING,SQUARE-PISTON | 1 | $20.63 | |
| 31 | 0702-563 | KIT,BRAKE PAD | 1 | $117.95 | |
| 32 | 1602-466 | CLIP, ANTI-RATTLE | 1 | $9.59 | |
| 33 | 1602-467 | CLIP,RETAINING-HAIRPIN | 1 | $6.06 | |
| 34 | 1602-464 | PIN,PAD RETAINER | 1 | $6.06 | |
| 36 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 37 | 0402-165 | WASHER-HYD BRAKE | 1 | $3.02 | |
| 38 | 1602-670 | BOLT,SHCS 5/16-18 UNC-2A 3.00 LG | 1 | $3.16 | |
| 39 | 1602-671 | BOLT,SHCS 5/16-18 UNC-2A 2.00 LG | 1 | $5.09 | |
| 40 | 2602-132 | SPACER,SPEEDO BRKT | 1 | $16.49 | |
| 41 | 2602-131 | BEARING,45MM X 68MM X 12MM | 1 | $57.95 | |
| 42 | 1602-463 | SLEEVE,SHAFT | 1 | $32.95 | |
| 43 | 1602-456 | RING,RETAINING-2.98 | 1 | $27.95 | |
| 44 | 1602-978 | FITTING,INLET-90 DEG 3/8-24 | 1 | $22.01 | |
| 45 | 4606-309 | PLATE,MOUNTING-SPEED SENSOR | 1 | $37.95 | |
| 46 | 8468-617 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353 | 1 | $0.54 | |
| 47 | 1623-676 | CLAMP,SPEED SENSOR | 1 | $1.50 | |
| 48 | 0630-207 | SENSOR,SPEED-HALL-ACT-R | 1 | $77.95 | |
| 49 | 8060-602 | RIVET,BLIND-DH AD62AB5 PL | 1 | $0.68 |
