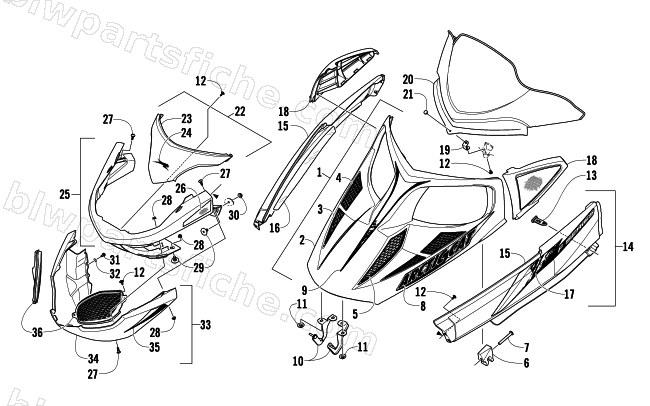

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2010 F8 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-645 | LID,HOOD-GRN W/DECALS | 1 | $324.95 | |
| 2 | 7999-263 | LID,HOOD-GRN-MFG ASSY | 1 | $189.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-730 | DECAL,HOOD LID-GRN-RH-"ARCTIC CAT" | 1 | $73.95 | |
| 8 | 8611-731 | DECAL,HOOD LID-GRN-LH-"ARCTIC CAT" | 1 | $51.95 | |
| 9 | 8611-732 | DECAL,HOOD-GRN CREST | 1 | $88.95 | |
| 10 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 10 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 2718-766 | SPAR,FRONT RH-BLK/GRN-W/DECALS | 1 | $51.95 | |
| 14 | 2718-745 | SPAR,FRONT-LH-BLK/GRN-W/DECALS | 1 | $51.95 | |
| 15 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 15 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 8611-726 | DECAL,FRT SPAR-GRN RH "F SERIES" | 1 | $70.95 | |
| 17 | 8611-727 | DECAL,FRT SPAR-GRN LH "F SERIES" | 1 | $73.95 | |
| 18 | 5606-920 | BEZEL,INTAKE-RH-GRN ASSY | 1 | $37.59 | |
| 18 | 5606-921 | BEZEL,INTAKE-LH-GRN ASSY | 1 | $54.95 | |
| 19 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 21 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 22 | 2718-548 | FACIA,BUMPER-UPR GRN-W/DECALS | 1 | $46.95 | |
| 23 | 4606-519 | FACIA,BUMPER-UPPER-MOLD GRN | 1 | $79.95 | |
| 24 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 25 | 2718-765 | BUMPER,FRONT CLIP-MOLD BLK W/ REFL | 1 | $160.95 | |
| 26 | 9611-282 | DECAL,REFLECTOR-AMBER-RH | 1 | $16.95 | |
| 26 | 9611-283 | R/B 9611-385 | 1 | $19.95 | |
| 27 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 2718-746 | FACIA, BUMPER-LWR-BLK-W/DECALS | 1 | $88.95 | |
| 34 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 35 | 8611-728 | DECAL,LWR FIA-FRT BUMPER-GRN RH | 1 | $24.77 | |
| 35 | 8611-729 | DECAL,LWR FIA-FRT BUMPER-GRN LH | 1 | $24.77 | |
| 36 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 36 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
