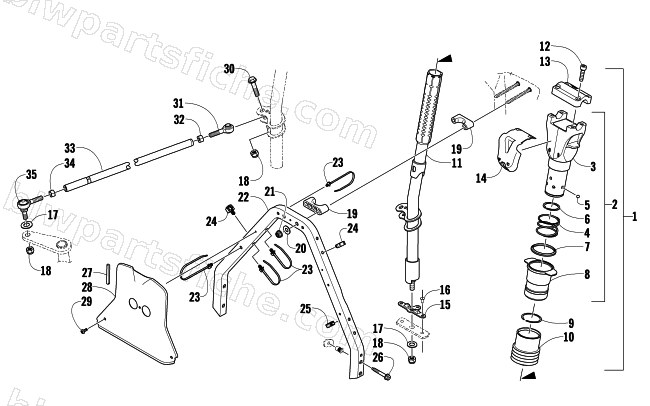

STEERING POST ASSEMBLY
2010 M1000 162 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0705-985 | BLOCK,ADJUSTING-HANDLEBAR-ASSY | 1 | $259.95 | |
| 3 | 0605-713 | BLOCK,ADJUSTING-HANDLEBAR | 1 | $200.95 | |
| 4 | 0605-715 | SPRING,COMPRESSION | 1 | $4.54 | |
| 5 | 0605-714 | BEARING,BALL-1/4" | 1 | $1.23 | |
| 6 | 1623-506 | SNAP RING (CL-168) | 1 | $3.30 | |
| 7 | 0605-852 | SEAL,WIPER-ROD-1.998 X 2.31 X 3/16 | 1 | $5.09 | |
| 8 | 1705-283 | COLLAR,SLIDE-STEERING POST-PTD BLK | 1 | $49.95 | |
| 9 | 1623-507 | SNAP RING (CLR-137) | 1 | $3.57 | |
| 10 | 0605-992 | SLEEVE,PROTECTOR-STEERING POST-MOLDED | 1 | $13.73 | |
| 11 | 1705-355 | POST,STEERING-PTD BLK | 1 | $200.95 | |
| 12 | 1623-753 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 RIE BLK | 1 | $2.06 | |
| 13 | 1705-284 | R/B 1605-175 | 1 | $20.95 | |
| 14 | 0605-867 | COVER,ADJUSTING BLOCK/HARNESS-INJ MOLD | 1 | $3.99 | |
| 15 | 0605-943 | STOP,STEERING POST-FORGED | 1 | $30.95 | |
| 16 | 8060-888 | RIVET,BLIND-DH SS86 ZINC | 1 | $1.23 | |
| 17 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 18 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 19 | 0605-576 | BLOCK,MTG-STEERING POST | 1 | $6.75 | |
| 20 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 21 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 22 | 1705-260 | TUBE,SUPPORT-STEERING POST-MACH/FORMED | 1 | $125.95 | |
| 23 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 24 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 25 | 1623-717 | CLIP,ROUTING-LOCKING-.472 | 1 | $2.47 | |
| 26 | 1623-482 | SCREW,CAP-HFH 5/16 18X2.0 ZY (204) DPT | 1 | $2.75 | |
| 27 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 28 | 5606-501 | PANEL,CLOSE OUT-FORMED | 1 | $89.95 | |
| 29 | 1623-353 | SCREW,SELF TAP-TSPNH 10-24 X 3/8 Z&Y | 1 | $1.64 | |
| 30 | 8004-225 | SCREW,CAP-HH 3/8-24X1.50 G5 Z&Y | 1 | $1.23 | |
| 31 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 32 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 33 | 0605-995 | TUBE,TIE ROD-.750 X 20.81"-MACH | 1 | $68.95 | |
| 34 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 35 | 1605-011 | ROD END,LH-3/8-24 W/STUD | 1 | $43.95 |
