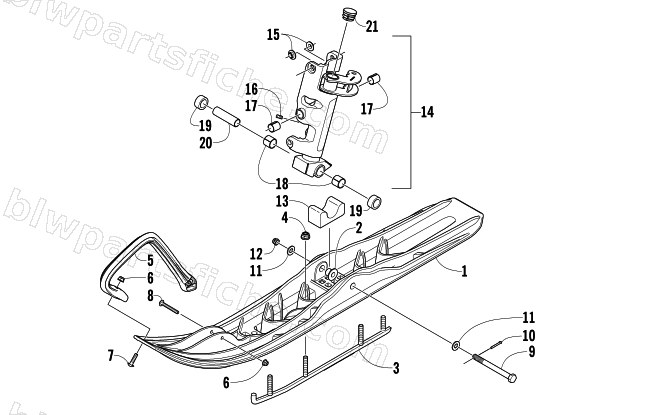

SKI AND SPINDLE ASSEMBLY
2010 M6 EFI 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-586 | SKI,PLASTIC(DEEP KEEL)-BLK | 1 | $264.95 | |
| 2 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 3 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 4 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 5 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 6 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 7 | 1623-689 | SCREW,MACH-TSTRH 1/4-20 X 1.00 GR5 Z&Y | 1 | $8.21 | |
| 8 | 1623-688 | SCREW,MACH-TSTRH 1/4-20 X 2.00 GR5 Z&Y | 1 | $4.26 | |
| 9 | 1623-781 | BOLT,SKI-HFH M10- 1.25 X 137 CL10.9 | 1 | $5.65 | |
| 10 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 11 | 1623-801 | WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z&Y | 1 | $0.95 | |
| 12 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 13 | 2603-553 | DAMPER,SKI-NARROW (75 DURO) | 1 | $22.01 | |
| 14 | 2703-246 | SPINDLE,RH (PLATINUM)-FAB | 1 | $311.95 | |
| 14 | 2703-247 | SPINDLE,LH (PLATINUM)-FAB | 1 | $311.95 | |
| 15 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 16 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 17 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 18 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 19 | 2603-208 | SPACER,SKI-ADJ STANCE-PLASTIC | 1 | $1.64 | |
| 20 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 21 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 |
