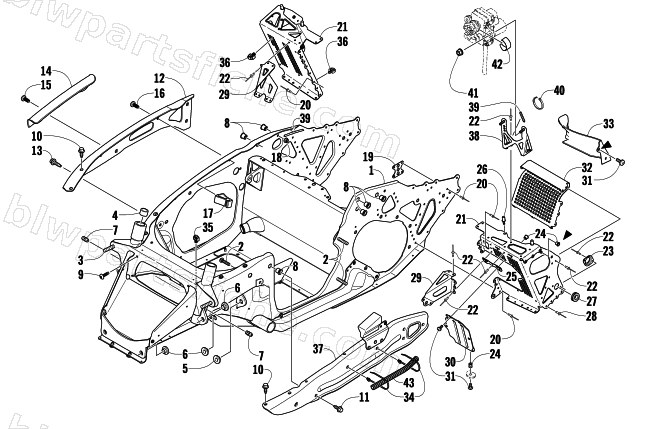

2010 Arctic Cat M8 153 SNO PRO LE — FRONT FRAME AND FOOTREST ASSEMBLY
2010 M8 153 SNO PRO LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-430 | CHASSIS/TUNNEL-S/P ASSY-PTD BLK 153" | 1 | $2,149.59 | |
| 1 | 1707-228 | CHASSIS-S/P ASSY-PTD BLK | 1 | $1,845.95 | |
| 2 | 1623-359 | BOLT,RIBBED CAR-5/16-18X1.75 | 1 | $2.06 | |
| 3 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 4 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 5 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 6 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 7 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 8 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 9 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 10 | 1623-480 | SCREW,CAP-HFH 1/4 20X.56 ZY (2353) DPT | 1 | $1.95 | |
| 11 | 1623-481 | SCREW,CAP-HFH 5/16 18X.875 ZY (204) DPT | 1 | $2.06 | |
| 12 | 6606-068 | BRACE,SIDE PLATE-RH | 1 | $168.95 | |
| 13 | 1623-561 | SCREW,CAP-HFH 5/16-18X0.75 W/204 | 1 | $1.78 | |
| 14 | 4606-793 | PROTECTOR,MAIN HARNESS-FORMED | 1 | $65.95 | |
| 15 | 1623-353 | SCREW,SELF TAP-TSPNH 10-24 X 3/8 Z&Y | 1 | $1.64 | |
| 16 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 17 | 0608-449 | GUIDE,ROPE-WIDE | 1 | $7.95 | |
| 18 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 19 | 2706-580 | PLATE,BACKING-FRT ARM-PTD BLK | 1 | $15.11 | |
| 20 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 21 | 4706-192 | FOOTREST,RH W/STUDS-PTD BLK | 1 | $85.95 | |
| 21 | 4706-193 | FOOTREST,LH W/STUDS-PTD BLK | 1 | $61.29 | |
| 22 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 23 | 3706-335 | PLATE,RETAINING-PTD BLK | 1 | $10.95 | |
| 24 | 1623-657 | INSERT,AT SERIES-ATS2-1024 | 1 | $3.57 | |
| 25 | 0607-835 | PLATE,MTG-CLUTCH GUARD/FOOTREST | 1 | $3.57 | |
| 26 | 1623-706 | STUD,CAPTIVE-ASS4 10/24-130-.500 | 1 | $3.44 | |
| 27 | 1623-529 | GROMMET,RUBBER-.50 IDX1.00 ODX.08 GRV | 1 | $3.85 | |
| 28 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 29 | 3706-336 | GUSSET,FOOTREST- UPPER RH-PTD BLK | 1 | $50.95 | |
| 29 | 3706-692 | BRKT,SUPPORT- LH-PTD BLK | 1 | $23.39 | |
| 30 | 4706-091 | PANEL,CLOSE OUT-FOOTREST-ASSY | 1 | $32.95 | |
| 31 | 1623-498 | SCREW,MACH-TSTRH 10-24X.375 RIE W/204 | 1 | $0.95 | |
| 32 | 3706-690 | BRKT,SUPPORT-LOW RH-PTD BLK | 1 | $58.95 | |
| 32 | 3706-691 | BRKT,SUPPORT-LOW LH-PTD BLK | 1 | $58.95 | |
| 33 | 4606-434 | COVER,FOOTREST-RH-INJ MOLD | 1 | $20.95 | |
| 33 | 4606-435 | COVER,FOOTREST-LH-INJ MOLD | 1 | $20.95 | |
| 34 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 35 | 1623-717 | CLIP,ROUTING-LOCKING-.472 | 1 | $2.47 | |
| 36 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 37 | 4706-755 | BRACE,SIDE PLATE-LH-ASSY | 1 | $120.95 | |
| 38 | 3706-613 | BRKT,MTG-SERVO MOTOR-ASSY | 1 | $32.95 | |
| 39 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 40 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 41 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 42 | 5606-208 | CLIP,SERVO MOTOR | 1 | $29.95 | |
| 43 | 1619-350 | LOOM,1/2"-NON SLIT X 5'- CTL | 1 | $16.49 |
