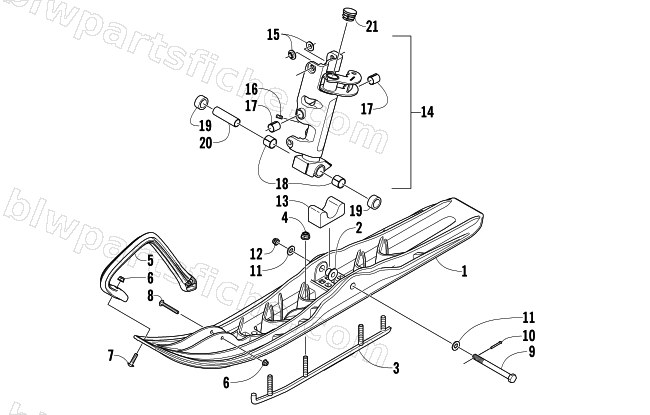

2010 Arctic Cat M8 153 SNO PRO LE — SKI AND SPINDLE ASSEMBLY
2010 M8 153 SNO PRO LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-586 | SKI,PLASTIC(DEEP KEEL)-BLK | 1 | $264.95 | |
| 2 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 3 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 4 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 5 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 6 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 7 | 1623-689 | SCREW,MACH-TSTRH 1/4-20 X 1.00 GR5 Z&Y | 1 | $8.21 | |
| 8 | 1623-688 | SCREW,MACH-TSTRH 1/4-20 X 2.00 GR5 Z&Y | 1 | $4.26 | |
| 9 | 1623-781 | BOLT,SKI-HFH M10- 1.25 X 137 CL10.9 | 1 | $5.65 | |
| 10 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 11 | 1623-801 | WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z&Y | 1 | $0.95 | |
| 12 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 13 | 2603-553 | DAMPER,SKI-NARROW (75 DURO) | 1 | $22.01 | |
| 14 | 2703-356 | SPINDLE,RH (BLK)-FAB | 1 | $294.95 | |
| 14 | 2703-357 | SPINDLE,LH (BLK)-FAB | 1 | $294.95 | |
| 15 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 16 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 17 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 18 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 19 | 2603-208 | SPACER,SKI-ADJ STANCE-PLASTIC | 1 | $1.64 | |
| 20 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 21 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 |
