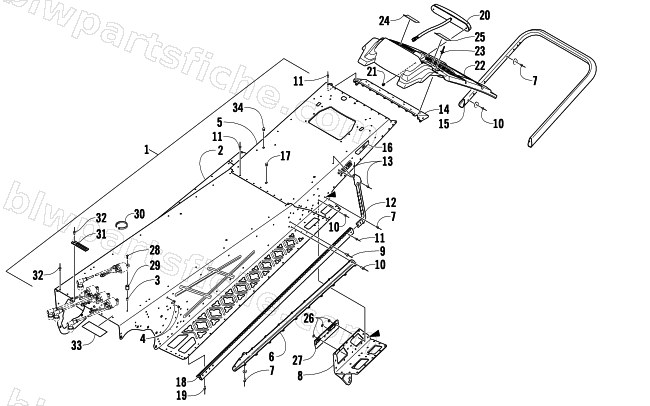

2010 Arctic Cat M8 153 SNO PRO LE — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2010 M8 153 SNO PRO LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-430 | CHASSIS/TUNNEL-S/P ASSY-PTD BLK 153" | 1 | $2,149.59 | |
| 1 | 2718-931 | TUNNEL-S/P ASSY 153"-PTD BLK | 1 | $882.95 | |
| 2 | 2718-932 | TUNNEL,FRONT-W/INSERTS-PTD BLK | 1 | $486.95 | |
| 3 | 1623-562 | INSERT, AL SERIES ALS4-1024-130 | 1 | $2.75 | |
| 4 | 1623-657 | INSERT,AT SERIES-ATS2-1024 | 1 | $3.57 | |
| 5 | 4706-894 | BODY,REAR-153"-PTD BLK | 1 | $185.95 | |
| 6 | 4706-170 | BRKT,TUNNEL SUPPORT-RH-PTD BLK | 1 | $53.95 | |
| 6 | 4706-171 | BRKT,TUNNEL SUPPORT-LH-PTD BLK | 1 | $53.95 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 8 | 4706-190 | BRKT,MTG-SUSP-RH-PTD BLK | 1 | $82.95 | |
| 8 | 4706-191 | BRKT,MTG-SUSP-LH-PTD BLK | 1 | $84.95 | |
| 9 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 10 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 4706-796 | GUSSET,TUNNEL ROLL-RH-PTD BLK | 1 | $22.01 | |
| 12 | 4706-797 | GUSSET,TUNNEL ROLL-LH-PTD BLK | 1 | $22.01 | |
| 13 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 14 | 4706-689 | END CAP,TUNNEL-PTD BLK | 1 | $32.95 | |
| 15 | 4706-893 | BUMPER,REAR-153"-PTD BLK | 1 | $97.95 | |
| 16 | 8611-520 | DECAL,REFLECTOR-REAR-RH (RED) | 1 | $23.39 | |
| 16 | 8611-521 | DECAL,REFLECTOR-REAR-LH (RED) | 1 | $23.39 | |
| 17 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 18 | 4706-872 | ROLL,TUNNEL-RH-PTD BLK | 1 | $131.95 | |
| 18 | 4706-873 | ROLL,TUNNEL-LH-PTD BLK | 1 | $131.95 | |
| 19 | 8060-502 | RIVET,BLIND-DH SS52-BLK | 1 | $0.95 | |
| 20 | 0609-863 | TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED | 1 | $112.95 | |
| 21 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 22 | 5606-525 | SNOWFLAP,LONG-INJ MOLD | 1 | $124.95 | |
| 23 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 24 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 25 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 26 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 27 | 4606-790 | GUIDE,TRACK-TUNNEL-R/H | 1 | $38.95 | |
| 27 | 4606-791 | GUIDE,TRACK-TUNNEL-L/H | 1 | $38.95 | |
| 28 | 1623-671 | SCREW,MACH-TSTRH 10-24X1.75 G2 W/204 | 1 | $1.23 | |
| 29 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 32 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 33 | 3606-814 | FOIL,PROTECTIVE-COVER-SERVO MOTOR | 1 | $1.78 | |
| 34 | 0623-355 | PLUG,HOLE-5/16 DIA-BLK | 1 | $0.40 |
