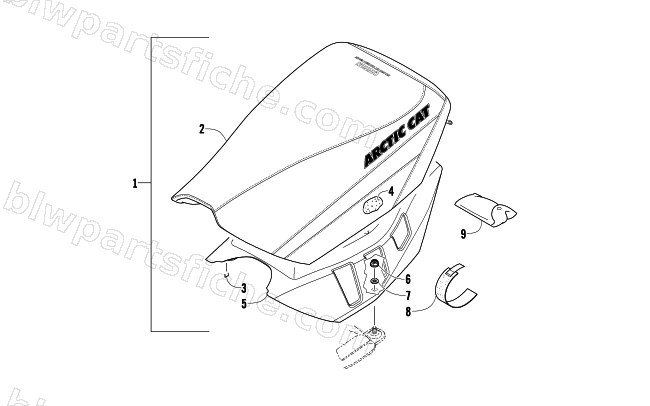

2010 Arctic Cat M8 153 — SEAT ASSEMBLY
2010 M8 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7800-466 | SEAT,GRN (10 M-SERIES)-MFG ASSY | 1 | $548.95 | |
| 2 | 4706-596 | COVER,SEAT (10 M-SERIES)-GRN | 1 | $396.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 4706-591 | FOAM,SEAT CUSHION-MC(91-96 ILD).48@2.8 | 1 | $125.95 | |
| 5 | 5606-995 | SEATBASE-BLOW MOLD | 1 | $104.95 | |
| 6 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 7 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 8 | 3706-033 | RETAINER,TOOL KIT-VELCRO | 1 | $16.49 | |
| 9 | 3706-731 | KIT,TOOL BAG-ASSY | 1 | $59.95 |
