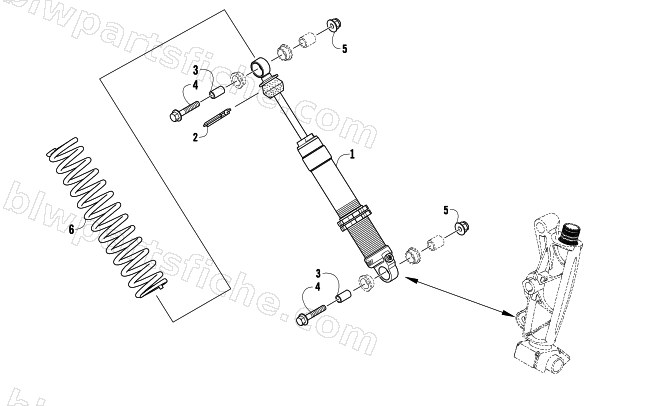

2010 Arctic Cat Z1 1100 EFI LXR — SHOCK ABSORBER ASSEMBLY
2010 Z1 1100 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-593 | SHOCK,SKI-ZERO PRO-16.70" | 1 | $439.95 | |
| 2 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 3 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 4 | 8408-055 | SCREW,CAP-HFH M10X1.25X55 CL8.8 Z&Y | 1 | $3.16 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 2703-442 | SPRING,COMP-120# X 13.5" -PTD PC GRN | 1 | $85.95 |
