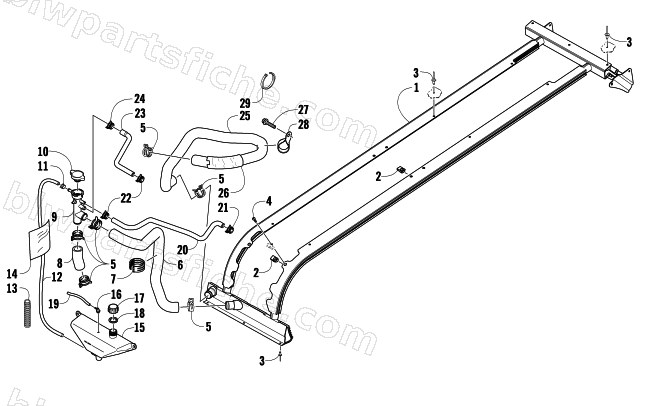

COOLING ASSEMBLY
2010 Z1 1100 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-378 | EXCHANGER,HEAT-W/U-NUT | 1 | $583.95 | |
| 1 | 4706-714 | EXCHANGER,HEAT-W/U-NUT (144") | 1 | $583.95 | |
| 2 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 3 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 3 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 4 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 5 | 1623-322 | CLAMP,HOSE-SPRING (15W X 35) | 1 | $4.26 | |
| 6 | 0610-778 | HOSE,COOLANT-EXCH TO FLR NECK | 1 | $60.95 | |
| 7 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 8 | 0610-753 | HOSE, COOLANT-FILLER TO ENG | 1 | $20.63 | |
| 9 | 1670-998 | NECK,FILLER-COOLANT | 1 | $17.87 | |
| 9 | 2670-013 | NECK,FILLER-COOLANT | 1 | $16.95 | |
| 10 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 11 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 12 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 | |
| 13 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 13 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 13 | 1619-345 | LOOM, HIGH TEMP-3/8" X 3'- CTL | 1 | $31.95 | |
| 14 | 0613-026 | R/B 0713-119 | 1 | $84.95 | |
| 15 | 2670-132 | FITTING,VENT-90 DEGREE | 1 | $2.95 | |
| 16 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 17 | 1623-834 | WASHER,RUBBER-12X27X2.4 | 1 | $1.92 | |
| 18 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 19 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 20 | 5606-560 | SPACER,5MM-(5/16" OD) | 1 | $3.71 | |
| 20 | 0610-732 | HOSE,COOLANT-BYPASS | 1 | $22.01 | |
| 21 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 22 | 0610-783 | HOSE,COOLANT-BYPASS | 1 | $24.77 | |
| 22 | 1623-280 | CLAMP,HOSE-SPRING (12W X 17) | 1 | $2.61 | |
| 23 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 | |
| 23 | 0610-786 | HOSE,COOLANT-TURBO | 1 | $20.63 | |
| 24 | 0610-638 | HOSE, COOLANT-ENG TO EXCH | 1 | $117.95 | |
| 24 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 25 | 0610-790 | LOOM,COOLANT HOSE-5 FT | 1 | $132.95 | |
| 26 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 27 | 4606-388 | BRKT, COOLANT HOSE | 1 | $19.25 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
