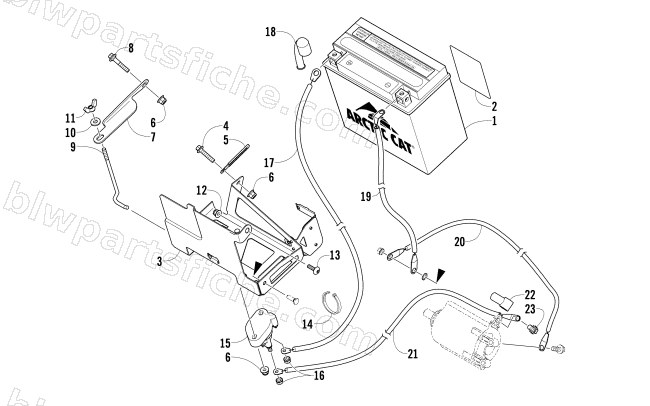

2010 Arctic Cat Z1 TURBO EXT SNO PRO — BATTERY AND TRAY ASSEMBLY
2010 Z1 TURBO EXT SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0745-348 | TRAY,BATTERY-ASSY-PTD BLK | 1 | $79.95 | |
| 4 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 5 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 0745-317 | BRKT,HOLD DOWN-BATTERY-PTD BLK | 1 | $12.95 | |
| 8 | 1623-725 | SCREW,SHOULDER-HFH M6X1.00X35 CL8.8Z&Y | 1 | $3.85 | |
| 9 | 0745-329 | ROD, HOLD DOWN-BATTERY-PTD BLK | 1 | $15.11 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 0423-716 | WINGNUT,NYLOC-M6X1.0 | 1 | $3.85 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 8476-816 | SCREW,MACH-TSTRH M8X1.25X16 Z&Y | 1 | $3.85 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 17 | 0645-587 | CABLE, BATTERY TO SOLENOID-15.50" | 1 | $34.95 | |
| 18 | 0645-521 | BOOT,TERMINAL-BATTERY | 1 | $3.85 | |
| 19 | 0645-586 | CABLE, BATTERY-GROUND | 1 | $32.95 | |
| 20 | 0645-590 | CABLE,STARTER-GND (Z1) | 1 | $20.63 | |
| 21 | 0645-589 | CABLE,SOLENOID TO STARTER | 1 | $32.95 | |
| 22 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 23 | 1623-451 | BOLT, STARTER MOTOR-HH SEMS M5X0.8X8 Z&Y | 1 | $3.44 |
