2010 Arctic Cat Z1 TURBO EXT SNO PRO — HEADLIGHT AND WIRING ASSEMBLIES
2010 Z1 TURBO EXT SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|

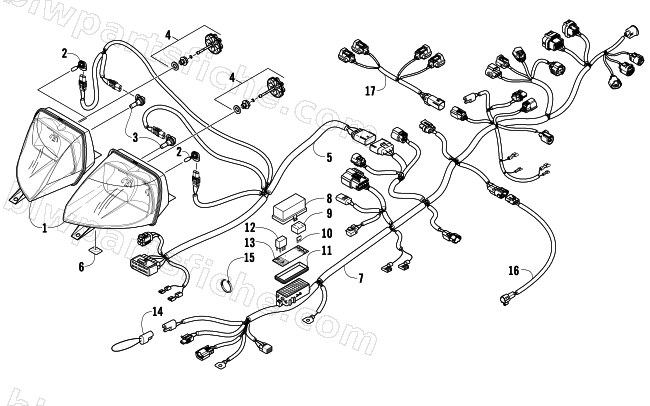

| 1 | 0609-908 | HEADLIGHT,RH-NO BEZEL-ASSY | 1 | $203.95 | |
| 1 | 0609-909 | HEADLIGHT,LH-NO BEZEL-ASSY | 1 | $203.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-547 | HARNESS,CONSOLE-4-STROKE | 1 | $206.95 | |
| 6 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 7 | 1686-519 | HARNESS, MAIN-Z1 TURBO | 1 | $1,222.95 | |
| 8 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 9 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 10 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 10 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 10 | 0430-099 | FUSE,MINI-25A | 1 | $2.95 | |
| 10 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 11 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 12 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 12 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 13 | 8611-663 | DECAL,POWER DISTRIBUTION MODULE-4 STK | 1 | $13.95 | |
| 14 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 15 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 16 | 1686-580 | HARNESS,TAILLIGHT EXTENSION-144" | 1 | $30.95 | |
| 17 | 1686-571 | HARNESS, SUB-ENGINE INJECTORS | 1 | $96.95 |
