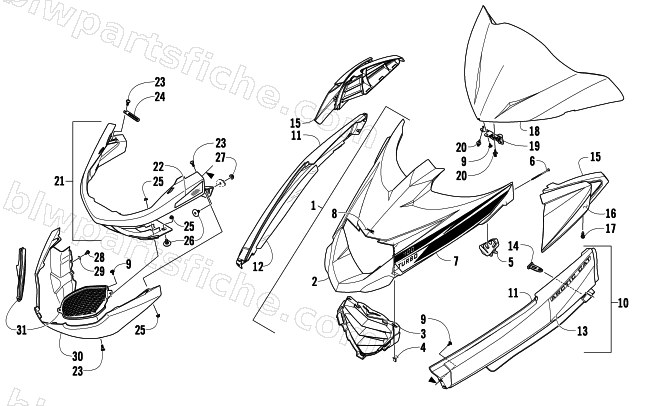

2010 Arctic Cat Z1 TURBO EXT SNO PRO — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2010 Z1 TURBO EXT SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-845 | LID,HOOD-GRN PTD CLEAR-TUR EXT-W/ DECALS | 1 | $334.95 | |
| 2 | 7800-523 | LID, HOOD-GRN PTD CLEAR-TURBO-MFG ASSY | 1 | $247.95 | |
| 3 | 5606-655 | GRILLE,INTERCOOLER-MOLD BLK | 1 | $20.63 | |
| 4 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 5 | 1623-768 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $23.39 | |
| 5 | 1623-769 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $23.39 | |
| 6 | 1623-810 | SCREW,WOOD-TSFH-#8-13X3.00" Z&Y | 1 | $0.95 | |
| 7 | 8611-758 | DECAL,HOOD LID-RH-"1100 TURBO" | 1 | $68.95 | |
| 7 | 8611-759 | DECAL,HOOD LID-LH-"1100 TURBO" | 1 | $90.95 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 2718-782 | SPAR,FRONT-RH-BLK PTD CLEAR-W/DECALS | 1 | $109.95 | |
| 10 | 2718-783 | SPAR,FRONT-LH-BLK PTD CLEAR-W/DECALS | 1 | $109.95 | |
| 11 | 4706-610 | SPAR,FRONT BLK-RH-PTD CLEAR | 1 | $117.95 | |
| 11 | 4706-611 | SPAR,FRONT BLK-LH-PTD CLEAR | 1 | $117.95 | |
| 12 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 13 | 8611-760 | DECAL,FRT SPAR-"ARCTIC CAT" | 1 | $85.95 | |
| 14 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 15 | 5606-776 | BEZEL,INTAKE-RH BLK-ASSY(TURBO) | 1 | $66.95 | |
| 15 | 5606-777 | BEZEL,INTAKE-LH BLK-ASSY(TURBO) | 1 | $66.95 | |
| 16 | 8611-956 | DECAL,BEZEL GRN-RH | 1 | $12.35 | |
| 16 | 8611-957 | DECAL,BEZEL GRN-LH | 1 | $12.35 | |
| 17 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 18 | 6606-024 | WINDSHIELD,TURBO EXTREME LOW-FLAT BLACK | 1 | $224.95 | |
| 19 | 4706-442 | BRKT,WINDSHIELD-HOLDDOWN-PTD BLK | 1 | $29.95 | |
| 20 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 21 | 2718-767 | BUMPER,FRONT CLIP-BLK/CLR W/ REFL | 1 | $164.95 | |
| 22 | 9611-282 | DECAL,REFLECTOR-AMBER-RH | 1 | $16.95 | |
| 22 | 9611-283 | R/B 9611-385 | 1 | $19.95 | |
| 23 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 24 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 25 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 26 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 27 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 28 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 29 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 30 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 31 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 31 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
