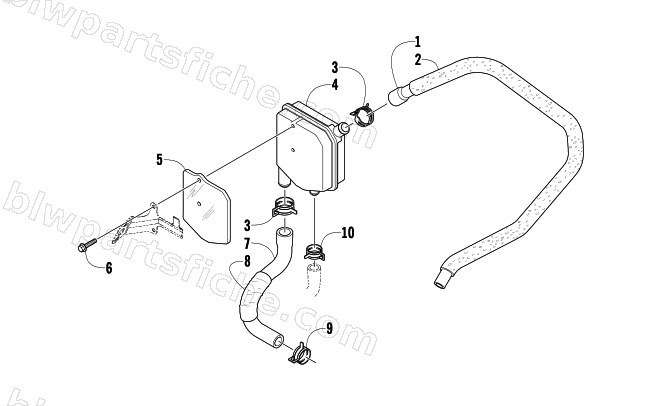

2010 Arctic Cat Z1 TURBO EXT — OIL SEPARATOR ASSEMBLY
2010 Z1 TURBO EXT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0610-733 | HOSE,BREATHER-VENT | 1 | $39.95 | |
| 2 | 0617-599 | FOAM,BREATHER VENT HOSE-30" | 1 | $15.11 | |
| 3 | 1623-291 | CLAMP,HOSE-SPRING (12W X 28) | 1 | $3.57 | |
| 4 | 0770-712 | TANK, SEPARATOR ASSY | 1 | $97.95 | |
| 5 | 2670-082 | COVER,INSULATING-SEPARATOR TANK | 1 | $26.95 | |
| 6 | 8408-610 | SCREW,CAP-HFH M6X1.0X10 CL8.8 Z&Y | 1 | $1.23 | |
| 7 | 0610-665 | HOSE, BREATHER-SEPARATOR | 1 | $43.95 | |
| 8 | 0610-836 | LOOM,PROTECTIVE-FIBERGLASS\AL-1" X 2' | 1 | $78.95 | |
| 9 | 1623-288 | CLAMP,HOSE-SPRING (12W X 25) | 1 | $3.57 | |
| 10 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 |
