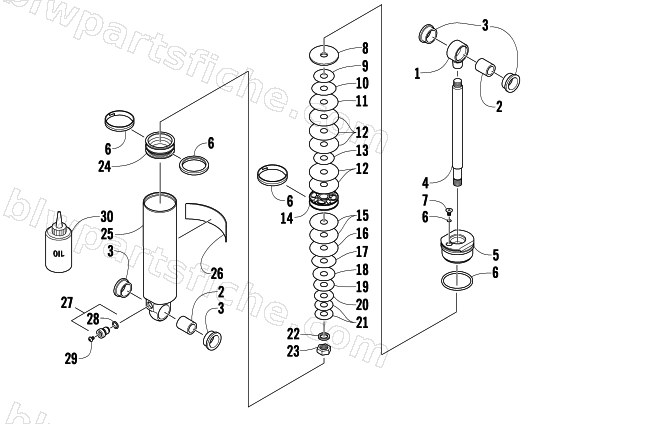

2010 Arctic Cat Z1 TURBO LXR — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2010 Z1 TURBO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-180 | SHOCK,REAR ARM-2" BORE-F8 SP | 1 | $269.95 | |
| 1 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 2 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 3 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 4 | 2604-622 | SHAFT,SHOCK-.498 X 7.260 | 1 | $149.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 5 | 2604-627 | BEARING,ENDCAP-.498"X2"OD - W/BLEED-ASSY | 1 | $124.95 | |
| 6 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 6 | 2604-880 | SEAL/BEARING-REBUILD KIT-803-00-108 | 1 | $71.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 7 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 8 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 8 | 2603-466 | WASHER,TOPOUT-1.570ODX.378IDX.093TH | 1 | $17.87 | |
| 9 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 9 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 10 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 10 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 11 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 11 | 2604-647 | VALVE,1.425 X .010 (3/8ID) | 1 | $12.95 | |
| 12 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 12 | 2604-631 | VALVE,1.600 X .010 (3/8ID) | 1 | $16.95 | |
| 13 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 13 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 14 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 14 | 2604-645 | PISTON,DAMPING-1.834 BORE .055 ORIFACE | 1 | $71.95 | |
| 15 | 3604-509 | PISTON,SHOCK-1.459 BORE .063 ORIFICE | 1 | $72.95 | |
| 15 | 2604-633 | VALVE,1.425 X .015 (3/8ID) | 1 | $12.95 | |
| 16 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 16 | 2604-632 | VALVE,1.425 X .012 (3/8ID) | 1 | $12.95 | |
| 17 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 18 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 19 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 19 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 20 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 20 | 0603-886 | VALVE, SHOCK .900 X.015 | 1 | $14.95 | |
| 21 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 21 | 0603-885 | VALVE, SHOCK .800 X.015 | 1 | $6.95 | |
| 22 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 23 | 2604-864 | BODY,SHOCK - ALUM-7.25" | 1 | $212.95 | |
| 24 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 24 | 2604-886 | PISTON,IFP- 1.834" NO BLEED-ASSY | 1 | $128.95 | |
| 25 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 25 | 2604-621 | BODY,ALUM-IMP EXTR (1.834BORE/9.233TLG | 1 | $372.95 | |
| 26 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 26 | 2604-889 | DECAL,SHOCK BODY-ZERO PRO-6.250X1.750 | 1 | $38.95 | |
| 27 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 28 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
