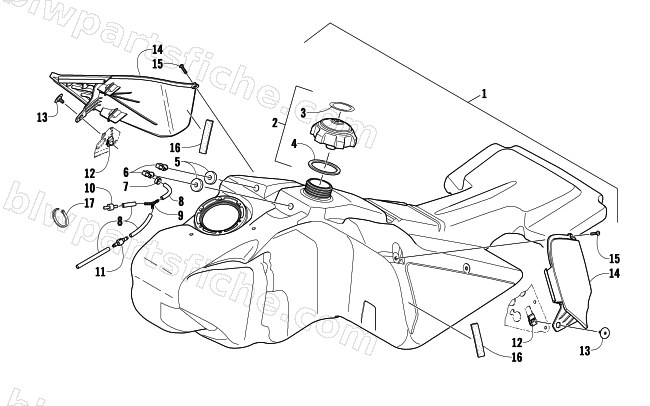

2010 Arctic Cat Z1 TURBO SNO PRO — GAS TANK ASSEMBLY
2010 Z1 TURBO SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-060 | TANK,FUEL-TURBO-EVOH-W/ CAP | 1 | $421.95 | |
| 2 | 2670-176 | CAP,VENTED-GAS-91 OCTANE | 1 | $50.95 | |
| 4 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 5 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 6 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 7 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 8 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 8 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 9 | 2670-105 | FITTING, Y-6X6X6MM | 1 | $16.49 | |
| 11 | 1670-913 | VALVE,PRESSURE RELIEF-VENTLINE | 1 | $26.95 | |
| 12 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 13 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 14 | 5606-144 | PANEL, KNEE-RH | 1 | $22.01 | |
| 14 | 5606-145 | PANEL, KNEE-LH | 1 | $22.01 | |
| 15 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 16 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
