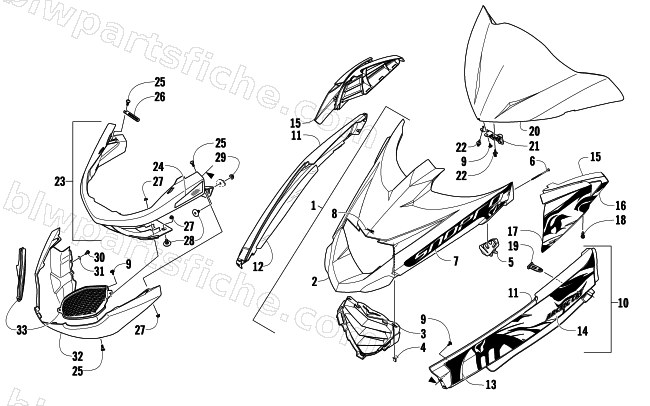

2010 Arctic Cat Z1 TURBO SNO PRO — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2010 Z1 TURBO SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-727 | LID,HOOD-GRN PTD CLEAR-TURBO-W/ DECALS | 1 | $457.95 | |
| 2 | 7800-523 | LID, HOOD-GRN PTD CLEAR-TURBO-MFG ASSY | 1 | $247.95 | |
| 3 | 5606-655 | GRILLE,INTERCOOLER-MOLD BLK | 1 | $20.63 | |
| 4 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 5 | 1623-768 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $23.39 | |
| 5 | 1623-769 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $23.39 | |
| 6 | 1623-810 | SCREW,WOOD-TSFH-#8-13X3.00" Z&Y | 1 | $0.95 | |
| 7 | 8611-828 | DECAL,HOOD LID-GRN-RH-"SNO PRO" | 1 | $141.95 | |
| 7 | 8611-829 | DECAL,HOOD LID-GRN-LH-"SNO PRO" | 1 | $141.95 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 2718-828 | SPAR,FRT RH-BLK/CLR-W/DECALS (SP TURBO) | 1 | $201.95 | |
| 10 | 2718-829 | SPAR,FRT LH-BLK/CLR-W/DECALS (SP TURBO) | 1 | $201.95 | |
| 11 | 4706-610 | SPAR,FRONT BLK-RH-PTD CLEAR | 1 | $117.95 | |
| 11 | 4706-611 | SPAR,FRONT BLK-LH-PTD CLEAR | 1 | $117.95 | |
| 12 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 13 | 8611-744 | DECAL,FRONT SPAR-FORWARD-GRN RH | 1 | $93.95 | |
| 13 | 8611-745 | DECAL,FRONT SPAR-FORWARD-GRN LH | 1 | $73.95 | |
| 14 | 8611-836 | DECAL,FRONT SPAR-REAR-GRN RH | 1 | $73.95 | |
| 14 | 8611-837 | DECAL,FRONT SPAR-REAR-GRN LH | 1 | $73.95 | |
| 15 | 6606-036 | BEZEL,INTAKE-RH GRN-ASSY(TURBO) | 1 | $58.95 | |
| 15 | 6606-037 | BEZEL,INTAKE-LH GRN-ASSY(TURBO) | 1 | $61.95 | |
| 16 | 8611-832 | DECAL,BEZEL-RH | 1 | $45.95 | |
| 16 | 8611-833 | DECAL,BEZEL-LH | 1 | $60.95 | |
| 17 | 8611-830 | DECAL,INTAKE DUCT-RH | 1 | $96.95 | |
| 17 | 8611-831 | DECAL,INTAKE DUCT-LH | 1 | $96.95 | |
| 18 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 19 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 20 | 6606-024 | WINDSHIELD,TURBO EXTREME LOW-FLAT BLACK | 1 | $224.95 | |
| 21 | 4706-442 | BRKT,WINDSHIELD-HOLDDOWN-PTD BLK | 1 | $29.95 | |
| 22 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 23 | 2718-772 | BUMPER,FRONT CLIP-GRN PTD CLR W/ REFL | 1 | $167.95 | |
| 24 | 9611-282 | DECAL,REFLECTOR-AMBER-RH | 1 | $16.95 | |
| 24 | 9611-283 | R/B 9611-385 | 1 | $19.95 | |
| 25 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 26 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 27 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 28 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 29 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 30 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 31 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 5606-463 | R/B 5606-462 | 1 | $56.95 | |
| 33 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 33 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
