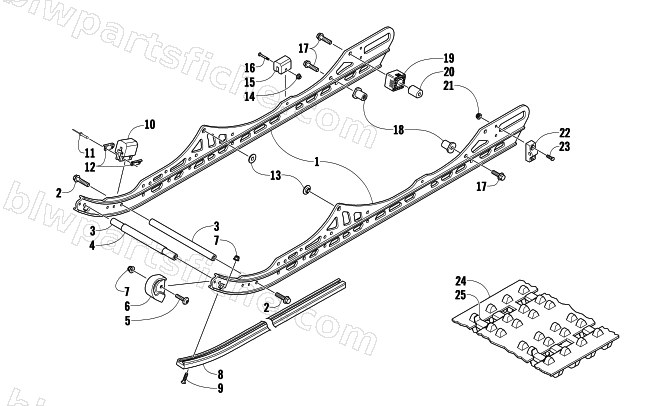

2010 Arctic Cat Z1 TURBO SNO PRO — SLIDE RAIL AND TRACK ASSEMBLY
2010 Z1 TURBO SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-572 | RAIL,SUSP-128" FORMED/MACH | 1 | $318.95 | |
| 2 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 3 | 3604-268 | AXLE,ALUM-M8 X 222.25 | 1 | $29.95 | |
| 4 | 2604-281 | SPACER,ALUMINUM-LIMITER STRAPS -5.38" | 1 | $13.73 | |
| 5 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 6 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 3604-186 | WEARSTRIP,SLIDE RAIL-46.25" | 1 | $32.95 | |
| 9 | 8474-625 | SCREW,MACH-TSFH M6X1.0X25 CL8.8 BLK | 1 | $2.95 | |
| 10 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 13 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 14 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 15 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 16 | 8470-540 | SCREW,MACH-TSPNH M5X0.8X40 CL8.8 Z&Y | 1 | $1.37 | |
| 17 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 18 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 19 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 20 | 3604-291 | BUSHING,REAR ARM COUPLER-M10 | 1 | $12.35 | |
| 21 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 22 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 23 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 24 | 2602-046 | TRACK,RIPSAW-15X128X1.25 | 1 | $1,029.95 | |
| 25 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
