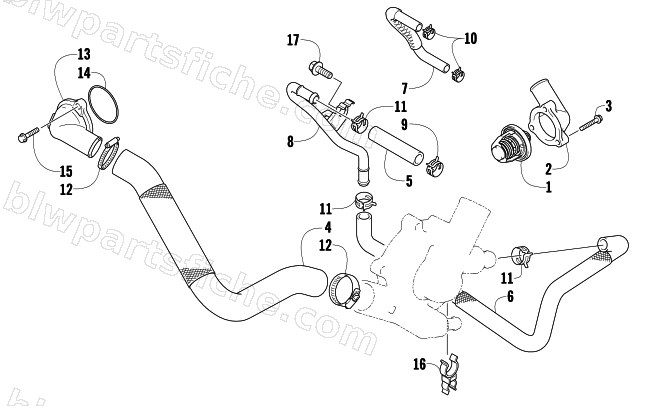

WATER HOSE ASSEMBLY
2010 Z1 TURBO SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-182 | THERMOSTAT,WATER | 1 | $66.95 | |
| 2 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 3 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 4 | 3007-513 | HOSE,WATER INLET | 1 | $68.95 | |
| 5 | 3007-822 | HOSE,WATER BYPASS NO. 1 | 1 | $17.87 | |
| 6 | 3007-514 | HOSE,WATER BYPASS NO.2 | 1 | $43.95 | |
| 7 | 3007-823 | HOSE,WATER BYPASS NO. 3 | 1 | $39.95 | |
| 8 | 3007-824 | PIPE,WATER | 1 | $66.95 | |
| 9 | 3007-188 | CLIP,WATER BYPASS HOSE NO.1 | 1 | $4.68 | |
| 10 | 3007-189 | CLIP,WATER BYPASS HOSE NO.3 | 1 | $5.37 | |
| 11 | 3008-488 | CLIP (ID:17.8) | 1 | $6.34 | |
| 12 | 3007-857 | CLAMP,WATER HOSE | 1 | $27.95 | |
| 13 | 3007-190 | CONNECTOR,WATER INLET | 1 | $65.95 | |
| 14 | 3007-191 | O RING,WATER INLET CONN (ID:43.2,DD:2.4) | 1 | $6.47 | |
| 15 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 | |
| 16 | 3007-516 | CLAMP,WATER BYPASS HOSE | 1 | $13.95 | |
| 17 | 3007-825 | BOLT,WATER PIPE | 1 | $4.68 |
