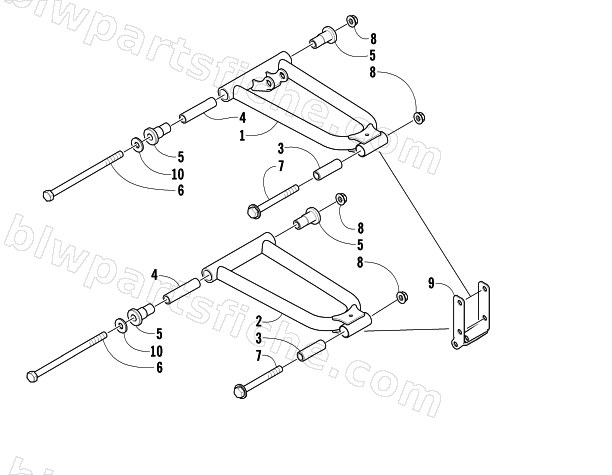

2011 Arctic Cat AC 120 SNO PRO — A-ARM ASSEMBLY
2011 AC 120 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-392 | A-ARM,UPPER-GRN-MACH | 1 | $66.95 | |
| 2 | 2703-393 | A-ARM,LOWER-GRN-MACH | 1 | $57.95 | |
| 3 | 1603-365 | AXLE, SUSPENSION | 1 | $4.26 | |
| 4 | 1603-394 | AXLE,INNER A-ARM | 1 | $9.59 | |
| 5 | 0605-451 | AXLE,PWD METAL-BELL CRANK (NO BEARING) | 1 | $5.09 | |
| 6 | 0623-900 | SCREW, CAP-HH 3/8-16X6 G5 ZY | 1 | $13.95 | |
| 7 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 2703-526 | BRKT, MTG-LOWER SHOCK-PTD GREEN | 1 | $20.63 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 |
