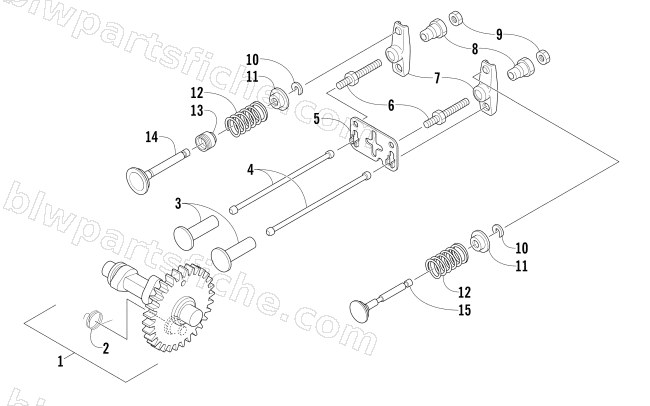

2011 Arctic Cat AC 120 SNO PRO — CAMSHAFT AND VALVE ASSEMBLY
2011 AC 120 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-049 | CAMSHAFT ASSEMBLY | 1 | $341.95 | |
| 2 | 3020-050 | SPRING | 1 | $12.35 | |
| 3 | 3020-044 | TAPPET, VALVE | 1 | $29.95 | |
| 4 | 3020-045 | ROD, PUSH-VALVE | 1 | $16.49 | |
| 5 | 3020-019 | GUIDE, PUSH ROD | 1 | $3.30 | |
| 6 | 3020-046 | BOLT | 1 | $5.09 | |
| 7 | 3020-043 | ARM, VALVE ROCKER | 1 | $22.01 | |
| 8 | 3020-048 | PIVOT, ROCKER ARM | 1 | $20.63 | |
| 9 | 3020-047 | NUT, LOCK | 1 | $5.65 | |
| 10 | 3020-042 | COTTER, VALVE | 1 | $2.19 | |
| 11 | 3020-041 | RETAINER, VALVE SPRING | 1 | $6.75 | |
| 12 | 3020-104 | SPRING, VALVE | 1 | $22.01 | |
| 13 | 3020-078 | SEAL, VALVE STEM | 1 | $33.95 | |
| 14 | 3020-017 | VALVE, INTAKE | 1 | $26.95 | |
| 15 | 3020-018 | VALVE, EXHAUST | 1 | $33.95 |
