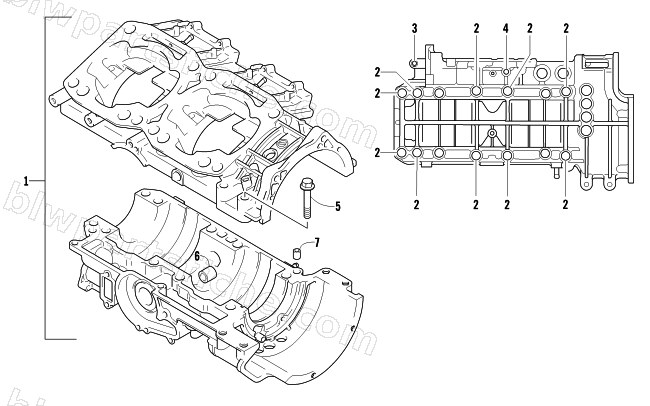

2011 Arctic Cat ARCTIC CAT SNO PRO 500 — CRANKCASE ASSEMBLY
2011 ARCTIC CAT SNO PRO 500
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3007-612 |
CRANKCASE ASSY |
1 |
$1,354.95 |
|
| 2 |
3006-483 |
BOLT |
1 |
$19.25 |
|
| 3 |
3007-409 |
BOLT |
1 |
$3.16 |
|
| 4 |
3007-461 |
BOLT |
1 |
$5.09 |
|
| 5 |
3007-399 |
BOLT,INLET PIPE |
1 |
$3.85 |
|
| 6 |
3003-647 |
BUSHING,OIL PUMP SHAFT,M10 |
1 |
$24.77 |
|
| 7 |
3005-206 |
PIN (H:10),DOWEL |
1 |
$3.30 |
|
