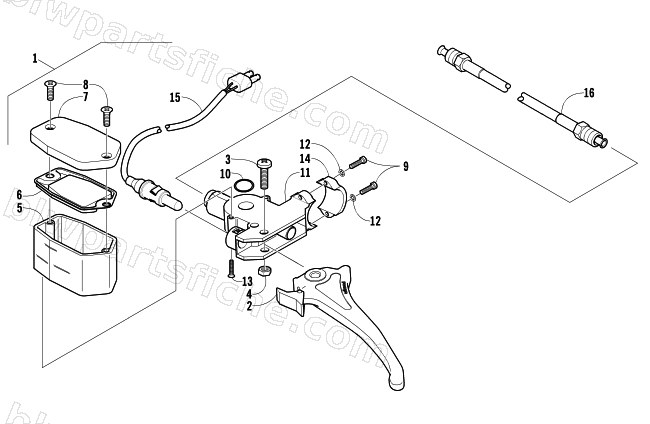

2011 Arctic Cat ARCTIC CAT SNO PRO 500 — HYDRAULIC BRAKE CONTROL ASSEMBLY
2011 ARCTIC CAT SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 | |
| 1 | 1602-964 | CYLINDER,MASTER-06 AC 440 | 1 | $291.95 | |
| 2 | 1602-712 | LEVER,BRAKE-LONG W/FLAT-ASSY | 1 | $54.95 | |
| 3 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 4 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 5 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 6 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 7 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 8 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 9 | 1623-906 | SCREW,CAP-TSH-1/4-20 X .88 | 1 | $3.16 | |
| 10 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 15 | 0609-648 | SWITCH,BRAKE-ASSY | 1 | $73.95 | |
| 16 | 1602-488 | R/B 3602-088 | 1 | $92.95 |
