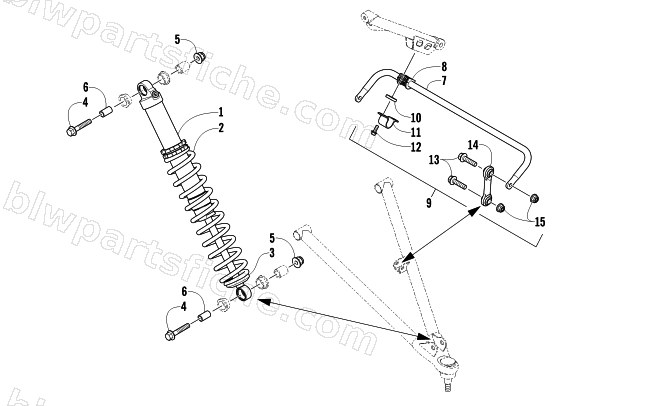

2011 Arctic Cat ARCTIC CAT SNO PRO 500 — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2011 ARCTIC CAT SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-809 | SHOCK,SKI-FOX | 1 | $436.95 | |
| 2 | 2703-406 | SPRING,COMP-145 LB X 13"-PTD WHT | 1 | $77.95 | |
| 2 | 2703-386 | SPRING,COMP-160 LB X 13"-PTD WHT | 1 | $142.95 | |
| 2 | 2703-387 | SPRING,COMP-190 LB X 13"-PTD WHT | 1 | $145.95 | |
| 2 | 2703-385 | SPRING,COMP-175 LB X 13"-PTD WHT | 1 | $142.95 | |
| 3 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 4 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 7 | 4639-961 | KIT,SWAY BAR-11.1MM | 1 | $206.95 | |
| 7 | 4639-962 | KIT,SWAY BAR-12.7MM | 1 | $149.95 | |
| 7 | 4639-963 | KIT,SWAY BAR-14.3 | 1 | $206.95 | |
| 8 | 2603-803 | BUSHING,SWAYBAR-PLASTIC-11.1MM | 1 | $35.95 | |
| 8 | 2603-804 | BUSHING,SWAYBAR-PLASTIC-12.7MM-MACH | 1 | $12.95 | |
| 8 | 2603-775 | BUSHING,SWAYBAR-PLASTIC-14.3MM-MACH | 1 | $6.95 | |
| 9 | 5639-635 | KIT,SWAY BAR MTG | 1 | $119.95 | |
| 10 | 1623-564 | WASHER,FLAT-.328 X .62 X .165 Z&Y | 1 | $1.64 | |
| 11 | 2603-829 | BRKT,SWAY BAR | 1 | $27.95 | |
| 12 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 13 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 14 | 2703-506 | LINK,SWAY BAR-FABR | 1 | $49.95 | |
| 15 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
