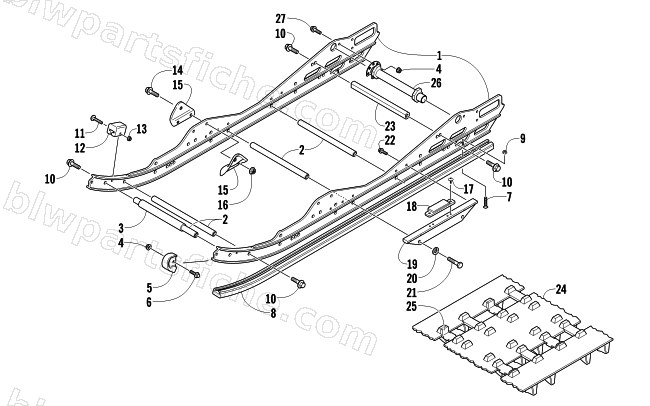

2011 Arctic Cat ARCTIC CAT SNO PRO 500 — SLIDE RAIL AND TRACK ASSEMBLY
2011 ARCTIC CAT SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-612 | RAIL,SUSPENSION-FORMED | 1 | $318.95 | |
| 2 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 3 | 3604-573 | SPACER,LIMITER STRAP | 1 | $58.95 | |
| 4 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 5 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 6 | 1623-539 | SCREW,CAP-HFH 1/4-20 X 1 GR 5 Z&Y | 1 | $17.87 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 3604-613 | WEARSTRIP,SLIDE RAIL -46.40" | 1 | $23.95 | |
| 9 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 1623-536 | SCREW,CAP-HFH 3/8-16 X 1.250 W/2353 | 1 | $3.16 | |
| 11 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 12 | 2604-868 | PAD,SHOCK-RUBBER | 1 | $24.77 | |
| 13 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 14 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 15 | 2604-593 | BRACKET,MTG-FRONT ARM-ZINC | 1 | $22.01 | |
| 16 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 17 | 1623-404 | SCREW,MACH-TXSTRH 10-24X.5 GR2 W/2353 | 1 | $2.06 | |
| 18 | 2604-656 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 19 | 3604-487 | BRACE,RAIL-MACH | 1 | $58.95 | |
| 20 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 21 | 1623-535 | SCREW,CAP-HH 3/8-16 X1.75 G5 W/2353 | 1 | $2.47 | |
| 22 | 1623-544 | SCREW,CAP-HFH 1/4-20 X 0.750 W/2353 | 1 | $1.92 | |
| 23 | 2604-259 | CROSSBRACE,REAR ARM | 1 | $34.95 | |
| 24 | 2602-255 | TRACK,COBRA-1P-15X128X1.25 | 1 | $1,071.95 | |
| 24 | 2602-019 | TRACK,15X128X1"-HACKSAW | 1 | $968.95 | |
| 25 | 2602-385 | CLIP,GUIDE | 1 | $4.40 | |
| 26 | 2704-051 | BLOCK,COUPLING-PTD BLK | 1 | $84.95 | |
| 27 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 |
