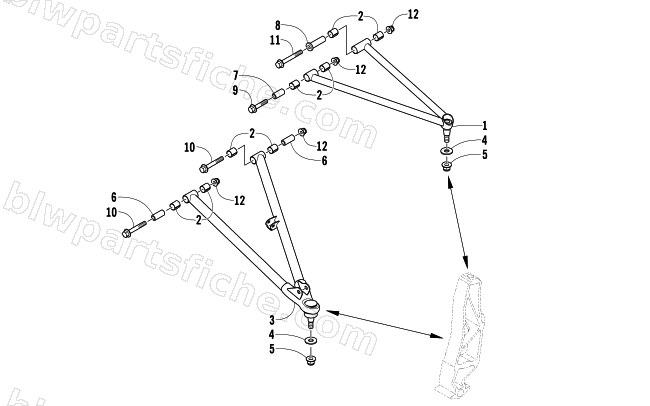

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — A-ARM ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-694 | A-ARM,UPR-GRN-RH FABR | 1 | $220.95 | |
| 1 | 2703-695 | A-ARM,UPR-GRN-LH FABR | 1 | $220.95 | |
| 2 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 3 | 2703-566 | A-ARM,LWR-FABR RH | 1 | $270.95 | |
| 3 | 2703-567 | A-ARM,LWR-FABR LH | 1 | $270.95 | |
| 4 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 5 | 1623-965 | NUT,HEX-THK NYL M12X1.25 CL8 Z&Y(DIN) | 1 | $1.50 | |
| 6 | 2603-544 | AXLE, A-ARM-LWR-FRONT | 1 | $2.88 | |
| 7 | 2603-643 | AXLE,SPINDLE UPR A-ARM-OUTER | 1 | $3.30 | |
| 8 | 2603-762 | AXLE,A-ARM-UPPER | 1 | $14.95 | |
| 9 | 8408-055 | SCREW,CAP-HFH M10X1.25X55 CL8.8 Z&Y | 1 | $3.16 | |
| 10 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 11 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 12 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
