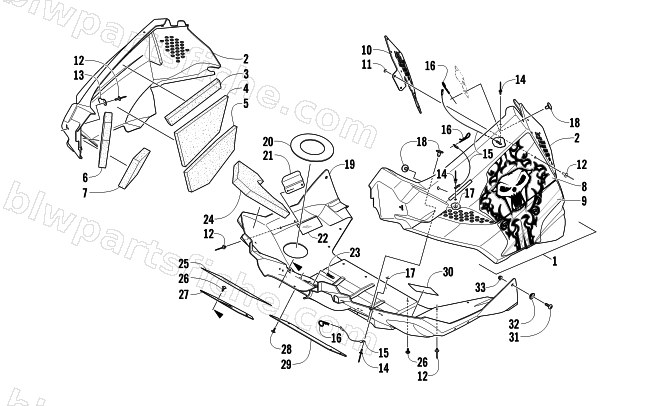

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — BELLY PAN ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-088 | PANEL,SIDE-RH-W/DECALS | 1 | $473.95 | |
| 1 | 3718-089 | PANEL,SIDE-LH-W/DECALS | 1 | $473.95 | |
| 2 | 3718-090 | PANEL,SIDE-RH-W/O DECALS | 1 | $432.95 | |
| 2 | 3718-091 | PANEL,SIDE-LH-W/O DECALS | 1 | $432.95 | |
| 3 | 0617-574 | FOAM,SIDE PANEL-UPR RH | 1 | $37.95 | |
| 3 | 0617-575 | FOAM,SIDE PANEL-UPR LH | 1 | $37.95 | |
| 4 | 0617-620 | FOAM,SIDE PANEL-LWR TOP-RH | 1 | $38.95 | |
| 4 | 0617-621 | FOAM,SIDE PANEL-LWR TOP-LH | 1 | $37.95 | |
| 5 | 0617-622 | FOAM,SIDE PANEL-LWR BOTTOM-RH | 1 | $47.95 | |
| 5 | 0617-623 | FOAM,SIDE PANEL-LWR BOTTOM-LH | 1 | $46.95 | |
| 6 | 0617-590 | FOAM,SIDE PANEL-UPR FWD RH | 1 | $37.95 | |
| 6 | 0617-591 | FOAM,SIDE PANEL-UPR FWD LH | 1 | $37.95 | |
| 7 | 0617-592 | FOAM,SIDE PANEL-LWR FWD RH | 1 | $16.49 | |
| 7 | 0617-593 | FOAM,SIDE PANEL-LWR FWD LH | 1 | $29.95 | |
| 8 | 9611-288 | DECAL,SIDE PANEL-UPR RH | 1 | $56.95 | |
| 8 | 9611-289 | DECAL,SIDE PANEL-UPR LH | 1 | $56.95 | |
| 9 | 9611-290 | DECAL,SIDE PANEL-LWR RH | 1 | $32.95 | |
| 9 | 9611-291 | DECAL,SIDE PANEL-LWR LH | 1 | $32.95 | |
| 10 | 6606-047 | PANEL,REINFORCEMENT | 1 | $19.25 | |
| 11 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 13 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 14 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 15 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 16 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 17 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 18 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 19 | 6606-294 | BELLY PAN | 1 | $500.95 | |
| 20 | 2612-507 | PLATE,EXHAUST OUTLET SEAL | 1 | $15.11 | |
| 21 | 0607-892 | BRKT,LATCH-CLUTCH GUARD | 1 | $12.35 | |
| 22 | 2606-558 | FOIL, PROTECTIVE,3" X 8" | 1 | $3.30 | |
| 23 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 24 | 0617-586 | FOAM,BELLY PAN-LWR RH | 1 | $51.95 | |
| 25 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 | |
| 26 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 27 | 5606-954 | PANEL,CLOSEOFF | 1 | $15.11 | |
| 28 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 29 | 5606-872 | COVER, ACCESS-CARBURETOR | 1 | $17.87 | |
| 30 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 31 | 8477-635 | SCREW,MACH-TSTRH M6X1.0X35 Z&BLK | 1 | $0.81 | |
| 32 | 0623-870 | INSERT, STRAP,SERVO MTG | 1 | $23.39 | |
| 33 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
