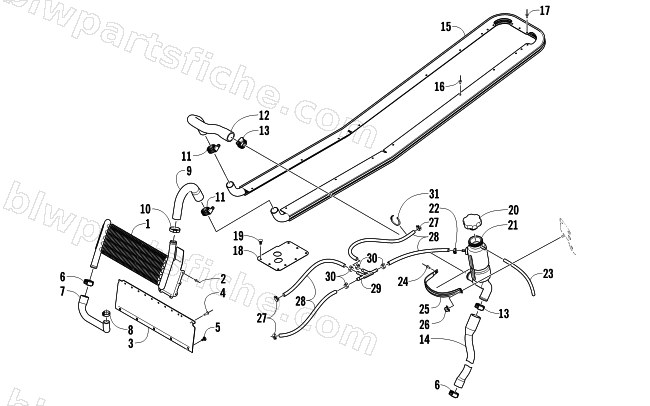

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — COOLING ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5606-857 | EXCHANGER,HEAT-FIN PLATE | 1 | $259.95 | |
| 2 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 3 | 6606-287 | PANEL,HEAT EXCHANGER-CLOSEOFF | 1 | $27.95 | |
| 4 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 1623-229 | CLAMP,SCREW-#012 | 1 | $3.85 | |
| 7 | 0610-782 | HOSE,COOLANT-ENG/HEAT EXCH | 1 | $42.95 | |
| 8 | 1623-418 | CLAMP,HOSE-21/SS | 1 | $5.51 | |
| 9 | 0610-781 | HOSE,COOLANT-LH EXCH/FIN PLATE EXCH | 1 | $43.95 | |
| 10 | 1623-349 | CLAMP,H0SE-CRIMP-31.6 | 1 | $3.99 | |
| 11 | 1623-230 | CLAMP,SCREW-#016 | 1 | $12.35 | |
| 12 | 0610-780 | HOSE,COOLANT-RH EXCH/COOLANT TANK | 1 | $53.95 | |
| 13 | 1623-093 | CLAMP,BAND-SAE #20 | 1 | $5.78 | |
| 14 | 0610-762 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $43.95 | |
| 15 | 5606-858 | EXCHANGER,HEAT-FORMED | 1 | $223.95 | |
| 16 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 17 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 18 | 5606-859 | SEAL,RUBBER-COOLANT HOSE | 1 | $12.35 | |
| 19 | 1623-907 | CLIP,CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 4606-209 | CAP,COOLANT BOTTLE (W/THREADS) | 1 | $26.95 | |
| 21 | 3706-684 | TANK,COOLANT-W/FITTING | 1 | $180.95 | |
| 22 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 23 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 23 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 24 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 25 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 26 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 27 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 28 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 29 | 0610-717 | FITTING,COOLANT HOSE-DOUBLE T | 1 | $3.02 | |
| 30 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 31 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
