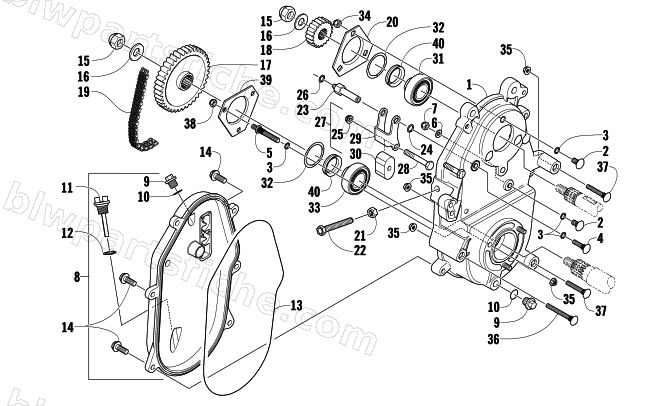

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — DRIVE/DROPCASE ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-628 | DROPCASE, W/STUDS | 1 | $184.95 | |
| 2 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 3 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 4 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 5 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 6 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 | |
| 7 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 8 | 7998-488 | COVER,DROPCASE-MFG ASSY | 1 | $108.95 | |
| 9 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 10 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 11 | 0602-462 | STICK,CHECK-OIL LEVEL | 1 | $10.97 | |
| 12 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 13 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 14 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 15 | 1623-923 | NUT,HEX FLG-NY LOCK 1/2-20 GR F Z&C | 1 | $1.50 | |
| 16 | 1623-922 | WASHER,SPRING-BELLEVILLE | 1 | $12.35 | |
| 17 | 2602-074 | SPROCKET,BORG WARNER-46T(13 WIDE) | 1 | $163.95 | |
| 18 | 1602-600 | SPROCKET,BORG WARNER-20T(15 WIDE) | 1 | $156.95 | |
| 19 | 1602-774 | CHAIN,BORG WARNER-74P(15 WIDE)8620 PIN | 1 | $292.95 | |
| 20 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 21 | 0123-150 | NUT,JAM 3/8-16 | 1 | $0.40 | |
| 22 | 1602-101 | SCREW, CHAIN,ROLLER | 1 | $5.95 | |
| 23 | 1602-864 | PIVOT,TENSIONER-MACH | 1 | $74.95 | |
| 24 | 1602-855 | O-RING,.412 ID X .210 | 1 | $0.95 | |
| 25 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 26 | 1602-322 | O-RING,2-203 | 1 | $2.61 | |
| 27 | 0702-833 | ADJUSTER,CHAIN-MANUAL ASSY | 1 | $84.95 | |
| 28 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 29 | 0605-812 | BRKT,CHAIN ROLLER | 1 | $22.01 | |
| 30 | 1602-963 | PAD,TENSIONING | 1 | $84.95 | |
| 31 | 2602-393 | BEARING,1 INCH (W/O-RING) | 1 | $41.95 | |
| 32 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 33 | 2602-389 | BEARING,1 1/16-DRIVESHAFT | 1 | $50.95 | |
| 34 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 35 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 36 | 1623-121 | BOLT,CRG-5/16-18X3.12 GR 2 Z&Y | 1 | $8.21 | |
| 37 | 8011-139 | BOLT,CRG 5/16-18X2.50 GR1 Z&Y | 1 | $1.23 | |
| 38 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 39 | 0602-932 | PLATE,FLANGE-BRG. | 1 | $15.11 | |
| 40 | 2602-229 | SEAL,BEARING-DROPCASE | 1 | $1.79 |
