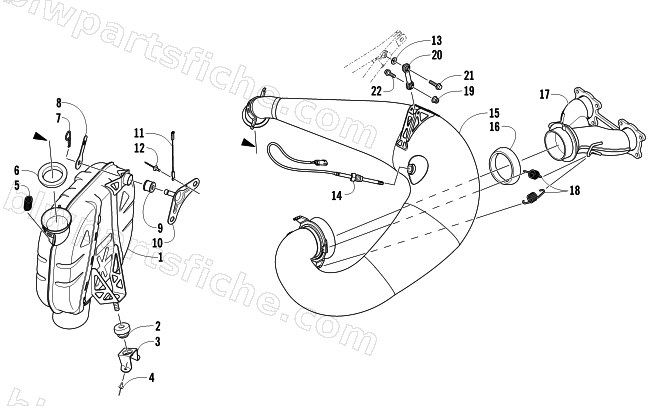

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — EXHAUST ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-630 | RESONATOR,EXHAUST-PTD BLK | 1 | $549.95 | |
| 2 | 2612-186 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $12.35 | |
| 3 | 2612-024 | BRKT,MTG-LWR RES/CHASSIS | 1 | $12.35 | |
| 4 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 5 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 6 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 7 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 8 | 2612-347 | WASHER,RESONATOR-MTG-W/TAB(1.25 OD) | 1 | $3.16 | |
| 9 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 10 | 1712-498 | BRKT,MTG-UPR RESONATOR-PTD BLK | 1 | $37.95 | |
| 11 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 12 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 13 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 14 | 0630-330 | SENSOR,EXHAUST TEMP-M14 X 1.5 | 1 | $213.95 | |
| 15 | 1712-686 | CHAMBER,EXPANSION-CERAMIC COATED | 1 | $1,130.95 | |
| 16 | 2612-615 | GASKET,EXHAUST-HEADPIPE | 1 | $32.95 | |
| 17 | 1712-682 | MANIFOLD,EXHAUST-MACH | 1 | $217.95 | |
| 18 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 2603-649 | LINK,SWAY BAR-2.00" | 1 | $57.95 | |
| 21 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 22 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 |
