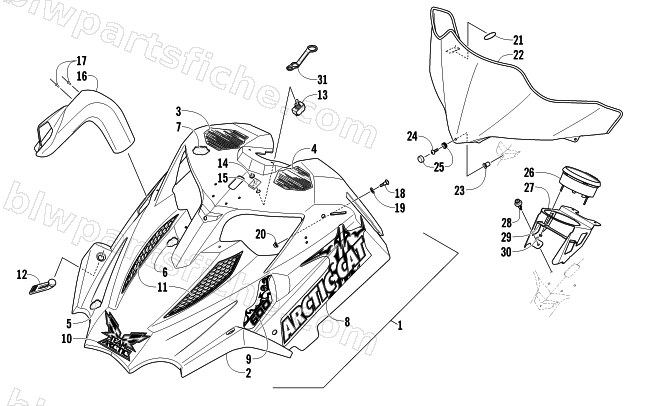

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — HOOD AND WINDSHIELD ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-093 | HOOD,W/DECALS | 1 | $869.95 | |
| 2 | 3718-094 | HOOD,W/O DECALS | 1 | $524.95 | |
| 3 | 8611-302 | DECAL,CAUTION/WARNING-FRENCH-RH | 1 | $20.63 | |
| 4 | 8611-303 | DECAL,CAUTION/WARNING-ENGLISH-LH | 1 | $20.63 | |
| 5 | 0617-576 | FOAM,HOOD-RH | 1 | $16.49 | |
| 5 | 0617-577 | FOAM,HOOD-LH | 1 | $42.95 | |
| 6 | 0617-579 | FOAM,HOOD-CENTER | 1 | $37.95 | |
| 7 | 0617-578 | FOAM,HOOD-REAR | 1 | $37.95 | |
| 8 | 9611-284 | DECAL,HOOD-"ARCTIC CAT"-RH | 1 | $93.95 | |
| 8 | 9611-285 | DECAL,HOOD-"ARCTIC CAT"-LH | 1 | $57.95 | |
| 9 | 9611-296 | DECAL,HOOD-UPR RH-"600" | 1 | $25.95 | |
| 9 | 9611-297 | DECAL,HOOD-UPR LH-"600" | 1 | $25.95 | |
| 10 | 8611-682 | DECAL,HOOD-CREST | 1 | $113.95 | |
| 11 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 11 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 12 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 13 | 0609-904 | SWITCH,TOGGLE-SPST | 1 | $24.77 | |
| 14 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 15 | 9611-054 | DECAL,HEADLIGHT | 1 | $15.11 | |
| 16 | 5606-641 | DUCT,BRAKE | 1 | $78.95 | |
| 17 | 0423-425 | RIVET,BLIND (3/16 X .157-.472 GRIP) | 1 | $1.23 | |
| 18 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 21 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 22 | 5606-867 | WINDSHIELD,MID-CROSS COUNTRY | 1 | $154.95 | |
| 23 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 24 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 25 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 26 | 0620-354 | SPEEDO,AC 600 CC R CALIB-STANDARD | 1 | $524.95 | |
| 27 | 4706-526 | BRKT,MTG-SPEEDO/TACH-PTD BLK | 1 | $62.95 | |
| 28 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 29 | 4706-527 | PLATE,BACKER-SPEEDO/TACH-PTD BLK | 1 | $34.95 | |
| 30 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 31 | 0644-566 | WRENCH,RETAINING NUT-TOGGLE SWITCH | 1 | $20.95 |
