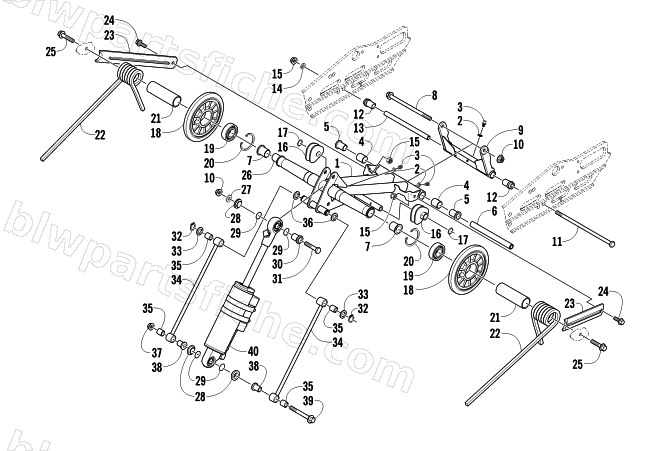

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — REAR SUSPENSION REAR ARM ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-918 | ARM,IDLER-FABR | 1 | $418.95 | |
| 2 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 5 | 3604-222 | BUSHING,AXLE | 1 | $34.95 | |
| 6 | 3604-226 | AXLE,ALUM-.622 X 6.817 | 1 | $73.95 | |
| 7 | 3604-223 | BEARING,FLANGED-PLASTIC | 1 | $15.11 | |
| 8 | 1623-674 | SCREW,CAP-HH 3/8-16X7.8 GR 5 Z&Y | 1 | $20.63 | |
| 9 | 1704-368 | ARM,REAR-FABR | 1 | $108.95 | |
| 10 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 11 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 12 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 13 | 2604-665 | TUBE,AXLE-REAR ARM | 1 | $29.95 | |
| 14 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 15 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 16 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 16 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 17 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 18 | 3604-616 | WHEEL,IDL-7.125(NO INSR)W/HOLE | 1 | $53.95 | |
| 19 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 20 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 21 | 3604-414 | SLEEVE,SPRING-4.50" | 1 | $9.59 | |
| 22 | 1704-916 | SPRING,SUSP-.405 SQ-RH-PTD BLK | 1 | $125.95 | |
| 22 | 1704-917 | SPRING,SUSP-.405 SQ-LH-PTD BLK | 1 | $125.95 | |
| 22 | 1704-382 | SPRING,SUSPENSION-RH LIGHT-PTD BLK | 1 | $145.95 | |
| 22 | 1704-383 | SPRING,SUSPENSION-LH LIGHT-PTD BLK | 1 | $145.95 | |
| 22 | 1704-384 | SPRING,SUSPENSION-RH HEAVY-PTD BLK | 1 | $144.95 | |
| 22 | 1704-385 | SPRING,SUSPENSION-LH HEAVY-PTD BLK | 1 | $144.95 | |
| 23 | 3604-408 | BRACE,SUPPORT-IDLER ARM-MACH | 1 | $36.95 | |
| 24 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 25 | 1623-903 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $3.85 | |
| 26 | 3604-388 | AXLE,ALUM-INNER CARRIAGE-.749X15.362 | 1 | $77.95 | |
| 27 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 28 | 3604-210 | SPACER, BEARING-.500 ID | 1 | $6.75 | |
| 29 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 30 | 3604-127 | SPACER,SPHERICAL BEARING | 1 | $51.95 | |
| 31 | 1623-120 | SCREW,CAP-HH 3/8-16X1.94 GR 5 Z&Y | 1 | $13.73 | |
| 32 | 0623-237 | SNAP RING,EXTL-5/8 DIA | 1 | $1.92 | |
| 33 | 1623-389 | WASHER,FLAT-.641 X .900 X .060 Z&Y | 1 | $1.37 | |
| 34 | 1704-377 | LINK,REAR SHOCK-FABR | 1 | $53.95 | |
| 35 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 36 | 1623-384 | WASHER,URETHANE-.180X1.00X.165 | 1 | $12.35 | |
| 37 | 8047-610 | NUT,HEX FLG-NY LOCK 1/2-13 GR G Z&Y | 1 | $2.75 | |
| 38 | 3604-209 | AXLE, LINK-FLANGED | 1 | $15.11 | |
| 39 | 8026-414 | SCREW,CAP-HFH 1/2-13 X 4 GR8 Z&Y | 1 | $5.65 | |
| 40 | 2704-049 | SHOCK,REAR ARM-FOX(CROSS COUNTRY) | 1 | $1,079.95 |
