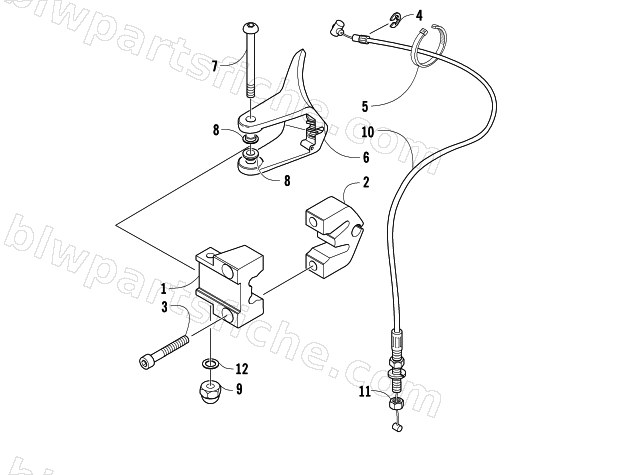

THROTTLE CONTROL ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0605-383 | BLOCK,MTG-THROTTLE LEVER (FRT) MACH | 1 | $54.95 | |
| 2 | 0605-384 | BLOCK,MTG-THROTTLE LEVER (REAR) MACH | 1 | $58.95 | |
| 3 | 8005-494 | SCREW, CAP-HSH 1/4-20X1.25 Z&Y | 1 | $1.50 | |
| 4 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 5 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 6 | 0609-481 | LEVER,TH-34MM SNO PRO | 1 | $17.87 | |
| 7 | 0609-789 | BOLT,SHOULDER-TSPNH-10-24X2.050 GR 5 | 1 | $20.95 | |
| 8 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 9 | 0609-790 | NUT,ACORN-CENTER LOCK - 10-24 | 1 | $1.64 | |
| 10 | 0687-238 | CABLE,THROTTLE | 1 | $65.95 | |
| 11 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 12 | 1623-616 | WASHER,NYLON-#10 X 3/8 X .062 | 1 | $0.26 |
