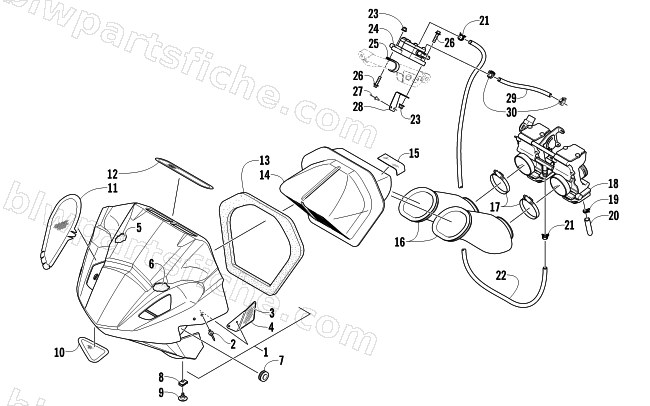

AIR SILENCER, CARBURETOR, AND FUEL PUMP ASSEMBLY
2011 ARCTIC CAT SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-083 | BUMPER,FRT/AIR SILENCER-W/FOAM | 1 | $412.95 | |
| 2 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 3 | 9611-390 | DECAL,REFLECTOR-AMBER RH | 1 | $22.01 | |
| 3 | 9611-391 | DECAL,REFLECTOR-AMBER LH | 1 | $22.01 | |
| 4 | 6606-264 | BRKT,MTG-REFLECTOR-RH | 1 | $8.21 | |
| 4 | 6606-265 | BRKT,MTG-REFLECTOR-LH | 1 | $8.21 | |
| 5 | 0617-612 | FOAM,AIR SILENCER-UPR RH | 1 | $15.11 | |
| 5 | 0617-613 | FOAM,AIR SILENCER-UPR LH | 1 | $15.11 | |
| 6 | 0617-610 | FOAM,FRT BUMPER/AIR-SIDE RH | 1 | $19.25 | |
| 6 | 0617-611 | FOAM,FRT BUMPER/AIR-SIDE LH | 1 | $19.25 | |
| 7 | 1623-256 | GROMMET,RUBBER-.63"ID X 1.13"OD X .19"GR | 1 | $3.99 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 10 | 5606-840 | SCREEN,AIR SILENCER-LWR RH | 1 | $33.95 | |
| 10 | 5606-841 | SCREEN,AIR SILENCER-LWR LH | 1 | $33.95 | |
| 11 | 5606-838 | SCREEN,AIR SILENCER-UPR RH | 1 | $33.95 | |
| 11 | 5606-839 | SCREEN,AIR SILENCER-UPR LH | 1 | $33.95 | |
| 12 | 5606-826 | SCREEN,AIR SILENCER-UPPER | 1 | $33.95 | |
| 13 | 0617-594 | FOAM,SEAL-AIR SILENCER INTAKE | 1 | $23.39 | |
| 14 | 5606-836 | INTAKE, AIR SILENCER | 1 | $200.95 | |
| 15 | 2606-554 | FOIL,PROTECTIVE-3" X 4" | 1 | $3.44 | |
| 16 | 2670-049 | BOOT,CARB | 1 | $93.95 | |
| 17 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 18 | 2670-207 | CARB,TM40-B415 | 1 | $1,209.95 | |
| 19 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 20 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 21 | 1623-197 | CLAMP, HOSE-SPRING-14MM | 1 | $2.75 | |
| 22 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 1670-230 | PUMP,FUEL W/O OIL INLET | 1 | $75.95 | |
| 25 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 | |
| 26 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 27 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 28 | 5606-967 | BRKT,MTG-FUEL PUMP | 1 | $6.75 | |
| 29 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 30 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
