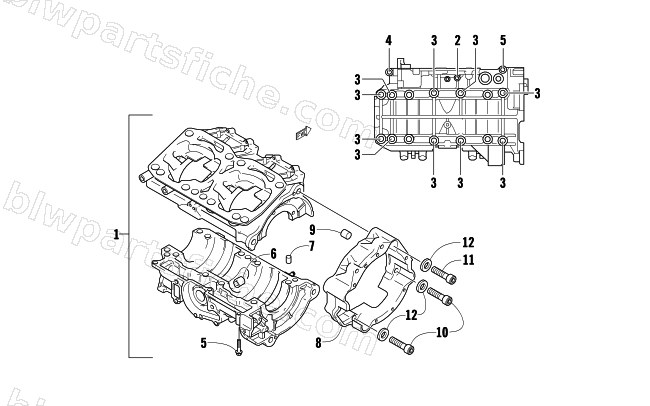

CRANKCASE ASSEMBLY
2011 ARCTIC CAT SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-733 | CRANKCASE ASSY | 1 | $1,913.95 | |
| 2 | 3007-899 | BOLT M6X100 | 1 | $20.63 | |
| 3 | 3006-488 | BOLT,10X87 | 1 | $5.65 | |
| 4 | 3007-380 | BOLT | 1 | $3.16 | |
| 5 | 3007-434 | BOLT | 1 | $3.16 | |
| 6 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 7 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 8 | 3006-967 | CASE,MAGNETO | 1 | $338.29 | |
| 9 | 3006-547 | PIN.KNOCK | 1 | $31.95 | |
| 10 | 3007-435 | BOLT | 1 | $4.95 | |
| 11 | 3007-436 | BOLT | 1 | $4.68 | |
| 12 | 3007-024 | WASHER,10X20X2.3 | 1 | $2.75 |
